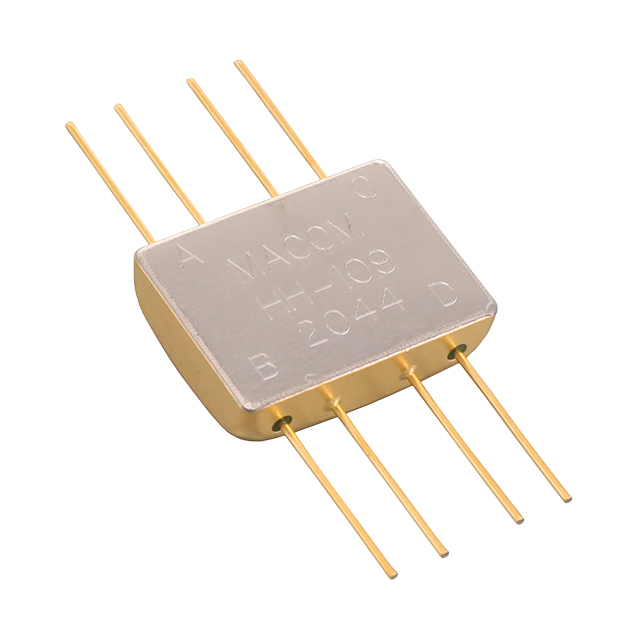

HH-109-PIN
ActiveMACOM Technology Solutions
HYBRID,BROAD-BAND,180DEG
HH-109-PIN
ActiveMACOM Technology Solutions
HYBRID,BROAD-BAND,180DEG
Description
General part information
HH-109 Series
RF Directional Coupler General Purpose 5MHz ~ 200MHz 500mW FP-2
Technical Specifications
Parameters and characteristics for this part
| Specification | HH-109-PIN |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency (Max) | 200 MHz |
| Frequency (Min) | 5 MHz |
| Insertion Loss | 1.4 dB |
| Isolation | 25 dB |
| Package / Case | FP-2 |
| Package Name | FP-2 |
| Power - Max | 0.5 W |
