355-080-520-501

Active

EDAC Inc.

355 SERIES (.156" (3.96MM) CONTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

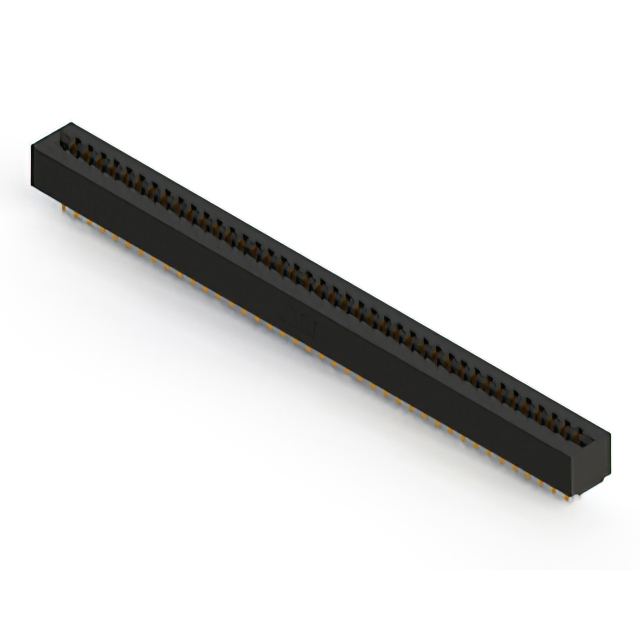

355-080-520-501

Active

EDAC Inc.

355 SERIES (.156" (3.96MM) CONTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	355-080-520-501

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

355-080 Series

Part	Features	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Contact Type	Termination Rows	Card Type	Contact Material	Flange Feature	Number of Rows	Gender	Pitch [x]	Pitch [x]	Contact Finish	Termination	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 355-080-555-507	Card Extender	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount
EDAC Inc. 355-080-520-278		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Panel Mount Through Hole
EDAC Inc. 355-080-555-207	Card Extender	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount
EDAC Inc. 355-080-521-504		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	Flush Mount Top Opening Unthreaded	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Panel Mount Through Hole	3.96 mm	0.156 in
EDAC Inc. 355-080-555-568		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount
EDAC Inc. 355-080-556-578		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount
EDAC Inc. 355-080-500-501		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy		2	Female	0.156 in	3.96 mm	Gold	Solder Eyelet(s)	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Free Hanging (In-Line)
EDAC Inc. 355-080-520-508		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Panel Mount Through Hole
EDAC Inc. 355-080-556-503	Card Extender	Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy	Floating Bobbin Flush Mount	2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Board Edge Straddle Mount	2.95 mm	0.116 in
EDAC Inc. 355-080-520-501		Black	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Semi Bellows	2	Non Specified - Dual Edge	Copper Alloy		2	Female	0.156 in	3.96 mm	Gold	Solder	Dual	40	80	-40 °C	105 ░C	10 Áin	0.25 Ám	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.15
Newark	Each	1	$ 14.77
		100	$ 12.32
		250	$ 11.05
		500	$ 10.34
		1000	$ 8.37

Description

General part information

355-080 Series

80 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
