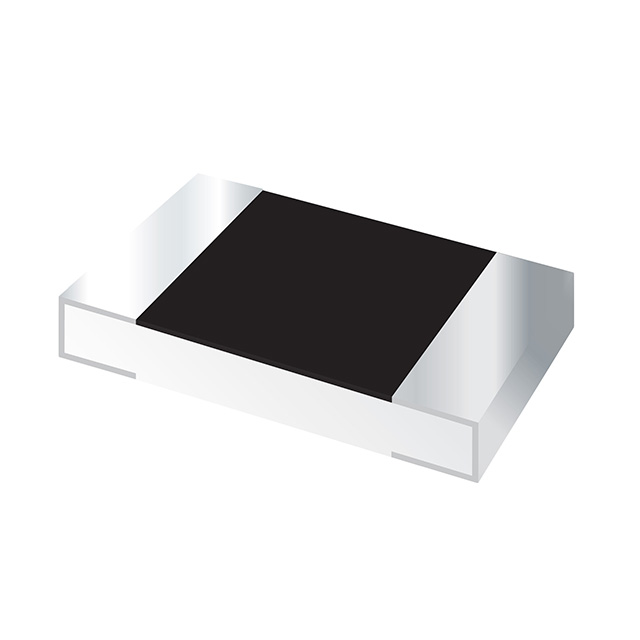

CG0201MLC-05H
ActiveBourns Inc.
POLYMER ESD PROTECTOR, 5V, 0201
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CG0201MLC-05H
ActiveBourns Inc.
POLYMER ESD PROTECTOR, 5V, 0201
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CG0201MLC-05H |
|---|---|
| Capacitance @ Frequency | 0.2 pF |
| Maximum DC Volts [Max] | 5 V |
| Mounting Type | Surface Mount, MLCV |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.08 | |||
| 5000 | $ 0.08 | |||
| Tape & Reel (TR) | 15000 | $ 0.07 | ||
| 30000 | $ 0.06 | |||
| 75000 | $ 0.06 | |||
| 105000 | $ 0.05 | |||
Description
General part information
CG0201 Series
Varistor 1 Circuit Surface Mount, MLCV 0201 (0603 Metric)
