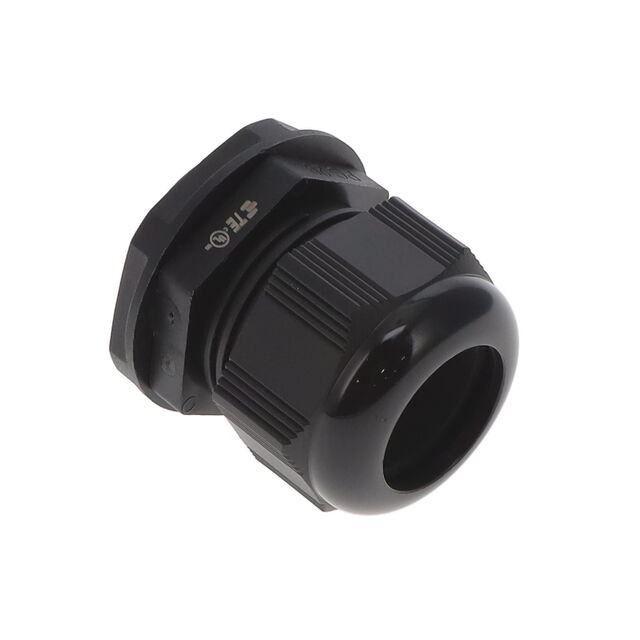

EP-SGL-PG29-BL-B

Active

TE Connectivity ENTRELEC

CABLE GLAND 18.01-25MM PG29

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 18.01-25MM PG29

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EP-SGL-PG29-BL-B	EP-SGL-PG29 Series

Color	Black	Black, Gray
Includes	Seal	Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	25 mm	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	18.01 mm
Thread Length	0.433 in	0.433 in
Thread Length	11 mm	11 mm
Thread Size	PG29	PG29
Type	Cable Gland	Cable Gland

CABLE GLAND 18.01-25MM PG29

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Thread Size	Type	Ingress Protection	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Thread Length	Thread Length
TE Connectivity ENTRELEC EP-SGL-PG29-BL-B	0.984 in	25 mm	PG29	Cable Gland	IP68 - Dust Tight, Waterproof	Black	0.709 in	18.01 mm	100 °C	-20 C	Seal	0.433 in	11 mm
TE Connectivity ENTRELEC EP-SGL-PG29-GR-B	0.984 in	25 mm	PG29	Cable Gland	IP68 - Dust Tight, Waterproof	Gray	0.709 in	18.01 mm	100 °C	-20 C	Seal	0.433 in	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG29 Black
