PM5022S-330M-RC

Active

Bourns Inc.

FIXED IND 33UH 2.5A 83 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM5022S-330M-RC

Active

Bourns Inc.

FIXED IND 33UH 2.5A 83 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM5022S-330M-RC

Current - Saturation (Isat)	5 A
Current Rating (Amps)	2.5 A
DC Resistance (DCR)	83 mOhm
Frequency - Self Resonant	10 MHz
Height - Seated (Max)	7.1 mm
Height - Seated (Max) [Max]	0.28 in
Inductance	33 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	44, 2.52 MHz
Shielding	Shielded
Tolerance	20 %
Type	Wirewound, Drum Core

PM5022S Series

Part	Current Rating (Amps)	Mounting Type	Shielding	Material - Core	Inductance	Inductance Frequency - Test	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Type	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max)	Q @ Freq	Frequency - Self Resonant
Bourns Inc. PM5022S-330M	2.8 A	Surface Mount	Shielded	Ferrite	33 µH	100 kHz	5 A	85 °C	-40 °C	Nonstandard	0.602 in	18.6 mm	15.3 mm	0.732 "	0.299 in	7.6 mm	20 %	Drum Core Wirewound	75 mOhm
Bourns Inc. PM5022S-151M	1.3 A	Surface Mount	Shielded	Ferrite	150 µH	100 kHz	2.1 A	85 °C	-40 °C	Nonstandard	0.602 in	18.6 mm	15.3 mm	0.732 "	0.299 in	7.6 mm	20 %	Drum Core Wirewound		293 mOhm
Bourns Inc. PM5022S-470M	2.4 A	Surface Mount	Shielded	Ferrite	47 µH	100 kHz	4 A	85 °C	-40 °C	Nonstandard	0.602 in	18.6 mm	15.3 mm	0.732 "	0.299 in	7.6 mm	20 %	Drum Core Wirewound	97 mOhm
Bourns Inc. PM5022S-680M-RC	1.6 A	Surface Mount	Shielded	Ferrite	68 µH	100 kHz	3.4 A	125 °C	-40 °C	Nonstandard							20 %	Drum Core Wirewound		170 mOhm	0.28 in	7.1 mm	2.52 MHz 37	6 MHz
Bourns Inc. PM5022S-681M-RC	0.54 A	Surface Mount	Shielded	Ferrite	680 µH	100 kHz	1.1 A	125 °C	-40 °C	Nonstandard							20 %	Drum Core Wirewound		1.47 Ohm	0.28 in	7.1 mm	19 796 kHz	2.1 MHz
Bourns Inc. PM5022S-681M	0.64 A	Surface Mount	Shielded	Ferrite	680 µH	100 kHz	960 mA	85 °C	-40 °C	Nonstandard	0.602 in	18.6 mm	15.3 mm	0.732 "	0.299 in	7.6 mm	20 %	Drum Core Wirewound	1.4 Ohm
Bourns Inc. PM5022S-330M-RC	2.5 A	Surface Mount	Shielded	Ferrite	33 µH	100 kHz	5 A	125 °C	-40 °C	Nonstandard							20 %	Drum Core Wirewound		83 mOhm	0.28 in	7.1 mm	2.52 MHz 44	10 MHz
Bourns Inc. PM5022S-102M-RC	450 mA	Surface Mount	Shielded	Ferrite	1 mH	100 kHz	900 mA	125 °C	-40 °C	Nonstandard							20 %	Drum Core Wirewound		2.16 Ohm	0.28 in	7.1 mm		1.5 MHz
Bourns Inc. PM5022S-471M-RC	0.64 A	Surface Mount	Shielded	Ferrite		100 kHz	1.3 A	125 °C	-40 °C	Nonstandard							20 %	Drum Core Wirewound		1 Ohm	0.28 in	7.1 mm	27 796 kHz	2.4 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.05
		10	$ 0.89
		25	$ 0.81
		50	$ 0.76
		100	$ 0.63
	Digi-Reel®	1	$ 1.05
		10	$ 0.89
		25	$ 0.81
		50	$ 0.76
		100	$ 0.63
	Tape & Reel (TR)	250	$ 0.58
		500	$ 0.55
		750	$ 0.52
		1250	$ 0.50
		2500	$ 0.49
		6250	$ 0.47
		12500	$ 0.45

Description

General part information

PM5022S Series

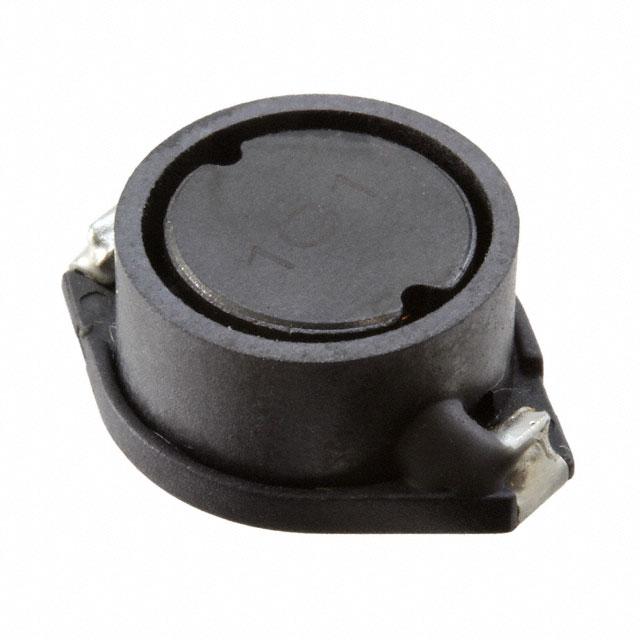

33 µH Shielded Drum Core, Wirewound Inductor 2.5 A 83mOhm Nonstandard
