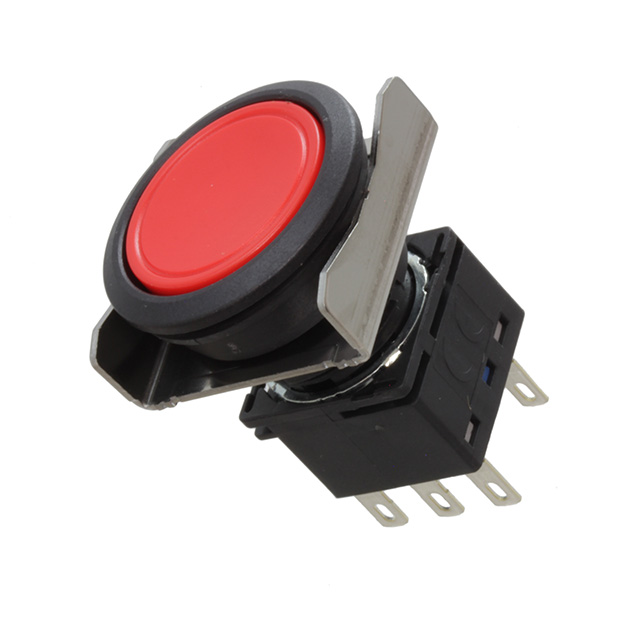

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, DPDT, MOMENTARY, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LBW6B-M1T6R

Active

IDEC Corporation

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, DPDT, MOMENTARY, RED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.70
Newark	Each	1	$ 40.75
		25	$ 37.34
		50	$ 34.68
		100	$ 33.55
		250	$ 32.41

Description

General part information

LBW6B Series

Pushbutton Switch DPDT Standard Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LBW6B-M1T6R	LBW6B Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	DPDT	SPDT, 3PDT, DPDT
Color - Actuator/Cap	Red	Black, Green, Yellow, Blue, White, Red
Current Rating (Amps)	5 A	5 - 100 A
Electrical Life	50000 Cycles	50000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles	250000 - 2000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	On-Mom	On-On, On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, PC Pin
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	30 V	30 V

LBW6B Series

INDUSTRIAL PUSHBUTTON SWITCH, LBW SERIES, 22 MM, SPDT, MAINTAINED, ROUND FLUSH, BLACK

...

Part	Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Circuit	Switch Function	Voltage Rating - AC	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Mechanical Life	Actuator Type	Mounting Type	Voltage Rating - DC	Termination Style	Termination Style	Termination Style
IDEC Corporation LBW6B-A1T5B	Standard	No Marking	22.3 mm	SPDT	On-On	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	5 A	50000 Cycles	Black	250000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V	0.11 in	Quick Connect, Solder	2.8 mm
IDEC Corporation LBW6B-M1T3VG	Standard	No Marking	22.3 mm	3PDT	On-Mom	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	100 mA	50000 Cycles	Green	2000000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V		PC Pin
IDEC Corporation LBW6B-M1T2Y	Standard	No Marking	22.3 mm	DPDT	On-Mom	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	100 mA	50000 Cycles	Yellow	2000000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V	0.11 in	Quick Connect, Solder	2.8 mm
IDEC Corporation LBW6B-M1T5S	Standard	No Marking	22.3 mm	SPDT	On-Mom	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	5 A	50000 Cycles	Blue	2000000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V	0.11 in	Quick Connect, Solder	2.8 mm
IDEC Corporation LBW6B-A1T1VW	Standard	No Marking	22.3 mm	SPDT	On-On	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	100 mA	50000 Cycles	White	250000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V		PC Pin
IDEC Corporation LBW6B-M1T5G	Standard	No Marking	22.3 mm	SPDT	On-Mom	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	5 A	50000 Cycles	Green	2000000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V	0.11 in	Quick Connect, Solder	2.8 mm
IDEC Corporation LBW6B-M1T6R	Standard	No Marking	22.3 mm	DPDT	On-Mom	125 V	IP65 - Dust Tight, Water Resistant	-25 °C	60 °C	5 A	50000 Cycles	Red	2000000 Cycles	Button, Flush, Round	Panel Mount, Front	30 V	0.11 in	Quick Connect, Solder	2.8 mm
