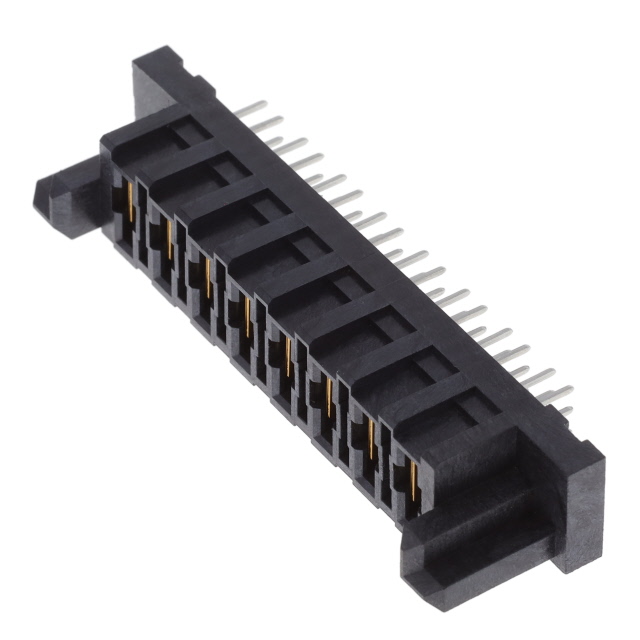

PES-08-02-L-VT

Active

Samtec Inc.

CONN RCPT 8POS PCB SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 8POS PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	PES-08-02-L-VT

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	40 A
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Voltage Rating	1025 V

Part	Color	Number of Rows	Material - Insulation	Termination	Current Rating (Amps)	Mounting Type	Contact Material	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. PES-08-01-S-VT	Black	1	Liquid Crystal Polymer (LCP)	Solder	40 A	Through Hole	Copper Alloy	Gold	8	-55 °C	125 °C	1025 V	Receptacle Female Blade Sockets	0.25 in	6.35 mm
Samtec Inc. PES-08-02-L-VT	Black	1	Liquid Crystal Polymer (LCP)	Solder	40 A	Through Hole	Copper Alloy	Gold	8	-55 °C	125 °C	1025 V	Receptacle Female Blade Sockets			10 Áin	0.25 Ám
Samtec Inc. PES-08-02-S-VT-LC	Black	1	Liquid Crystal Polymer (LCP)	Solder	40 A	Through Hole	Copper Alloy	Gold	8	-55 °C	125 °C	1025 V	Receptacle Female Blade Sockets	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Receptacle, Female Blade Sockets Connector Solder Through Hole
