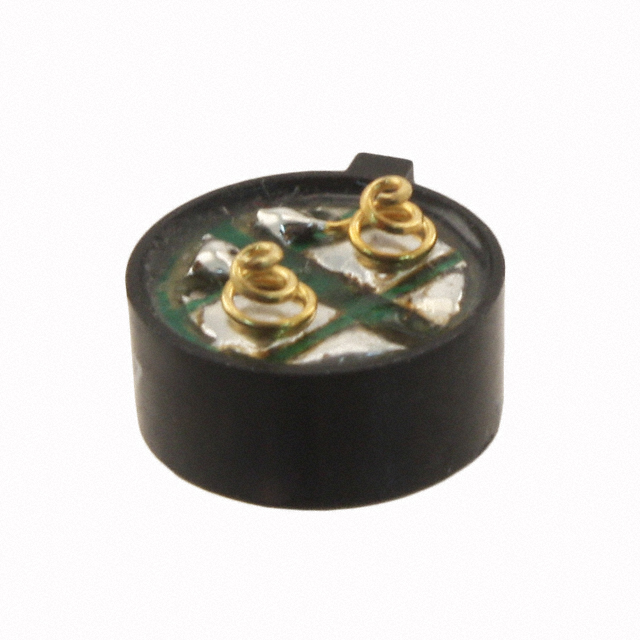

CST-934AS

Active

CUI Devices

BUZZER MAGNETIC 3V 9.00MM CUSTOM

Search across all available documentation for this part.

Active

CUI Devices

BUZZER MAGNETIC 3V 9.00MM CUSTOM

Technical Specifications

Parameters and characteristics for this part

Specification	CST-934AS

Current - Supply	80 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.73 kHz
Height - Seated (Max) [Max] [z]	4.7 mm
Height - Seated (Max) [Max] [z]	0.185 "
Input Type	Zero-Peak Signal
Mounting Type	Custom
Operating Mode	Single Tone
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Ratings	Washable
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Sound Pressure Level (SPL)	90 dB
Technology	Magnetic
Termination	Spring Terminals
Voltage - Rated	3 VDC
Voltage Range [Max]	4.5 V
Voltage Range [Min]	2 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Technology	Sound Pressure Level (SPL)	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Supply	Input Type	Frequency	Ratings	Port Location	Driver Circuitry	Operating Mode	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
CUI Devices CST-934AS	9 mm	0.354 in	Spring Terminals	Magnetic	90 dB	2 V	4.5 V	-20 C	60 °C	Custom	80 mA	Zero-Peak Signal	2.73 kHz	Washable	Top	Externally Driven Transducer	Single Tone	3 VDC	4.7 mm	0.185 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Magnetic 3 V 80mA 2.73kHz 90dB @ 3V, 5cm Custom Spring Terminals
