TE1-1F-DC-1-PB

Active

Switch Components

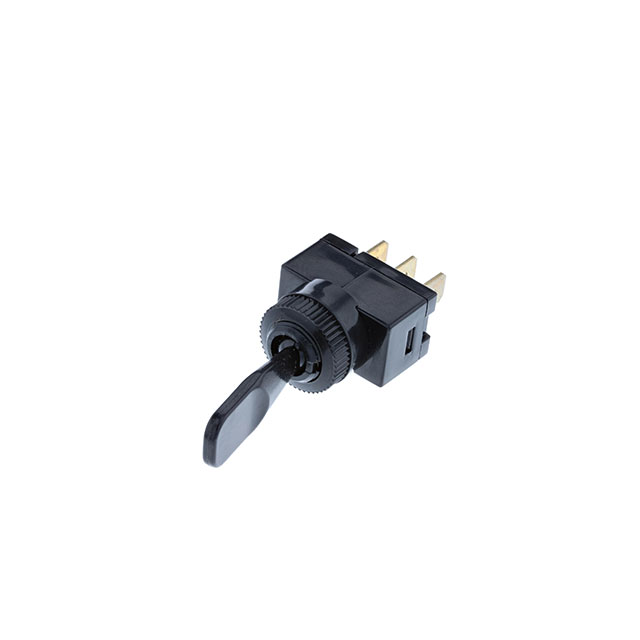

SWITCH TOGGLE SPDT 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TE1-1F-DC-1-PB

Actuator Length [x]	27.5 mm
Actuator Material	Polycarbonate (PC)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V

SWITCH TOGGLE SPDT 20A 12V

Part	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Bushing Thread	Bushing Thread	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Electrical Life	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Actuator Material	Illumination
Switch Components TE1-1F-DC-1-PB	Flatted	12.2 mm	On-Off-On	M12	1 x 1	SPDT	-25 °C	85 °C	Quick Connect - 0.250" (6.3mm)	6000 Cycles	27.5 mm	12 V	20 A	Polycarbonate (PC)	Non-Illuminated
