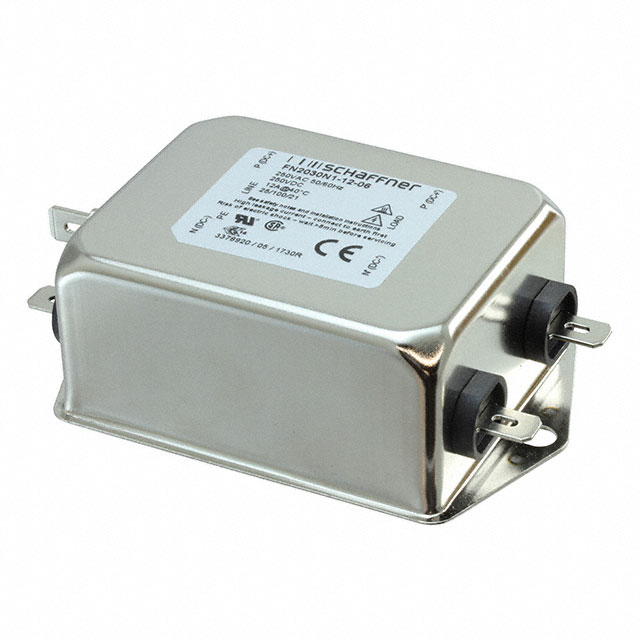

FN2030N1-12-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VDC/VAC 12A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2030N1-12-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VDC/VAC 12A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2030N1-12-06

Applications	General Purpose
Approval Agency	UR, CSA, ENEC, CE
Configuration	Single Stage
Current	12 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	4 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V
Voltage - Rated DC	250 V

Schaffner FN2030 Series

Power Line Filters Single Phase Chassis Mount HP Filter 250VAC, 8A, Wire, <5uA

Part	Applications	Operating Temperature [custom]	Current	Frequency - Operating	Termination Style	Voltage - Rated DC	Voltage - Rated AC	Configuration	Mounting Type	Inductance	Approval Agency	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Raychem Cable Protection FN2030M-3-06	General Purpose	-25 °C 100 °C	3 A	400 Hz	Quick Connect	250 V	250 V	Single Stage	Chassis Mount	14 mH	CE CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030N1-8-06	General Purpose	-25 °C 100 °C	8 A	400 Hz	Quick Connect	250 V	250 V	Single Stage	Chassis Mount	8 mH	CE CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030B-30-08	General Purpose	-25 °C 100 °C	30 A	400 Hz	Threaded Post (M4)		250 V	Single Stage	Chassis Mount	2 mH	CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030-4-06	General Purpose	-25 °C 100 °C	4 A	400 Hz	Quick Connect		250 V	Single Stage	Chassis Mount	14 mH	CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030-6-06	General Purpose	-25 °C 100 °C	6 A	400 Hz	Quick Connect		250 V	Single Stage	Chassis Mount	8 mH	CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030-1-06	General Purpose	-25 °C 100 °C	1 A	400 Hz	Quick Connect		250 V	Single Stage	Chassis Mount	20 mH	CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030M-6-06	General Purpose	-25 °C 100 °C	6 A	400 Hz	Quick Connect	250 V	250 V	Single Stage	Chassis Mount	8 mH	CE CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030M-20-08	General Purpose	-25 °C 100 °C	20 A	400 Hz	Threaded Post (M4)	250 V	250 V	Single Stage	Chassis Mount	4 mH	CE CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030B-3-06	General Purpose	-25 °C 100 °C	3 A	400 Hz	Quick Connect		250 V	Single Stage	Chassis Mount	14 mH	CSA ENEC UR	Single Phase
TE Connectivity Raychem Cable Protection FN2030Z-4-06	General Purpose	-25 °C 100 °C	4 A		Quick Connect	250 V	250 V	Two Stage	Chassis Mount	14 mH	CE CSA ENEC UKCA UR	Single Phase	60 Hz	50 Hz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 21.93

Description

General part information

Schaffner FN2030 Series

Power Line Filters Single Phase Chassis Mount HP Filter 250VAC, 8A, Wire, <5uA
