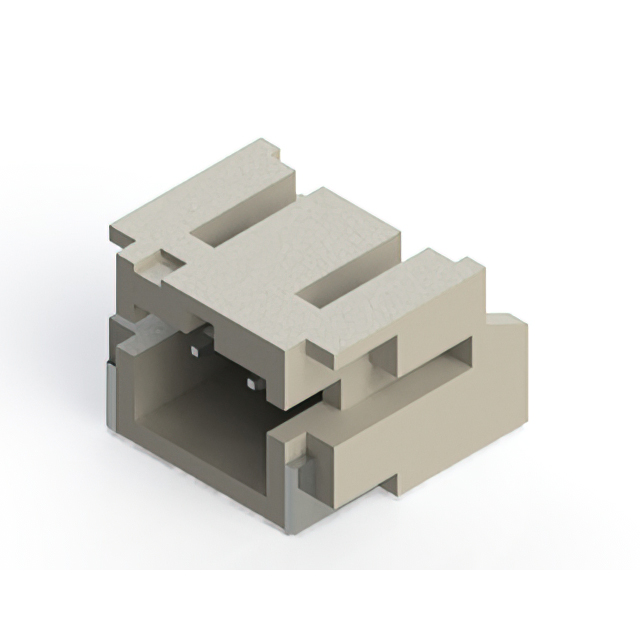

140-502-417-060

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 2 SUR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-502-417-060

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 2 SUR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-502-417-060	140-502 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	Solder Retention	Solder Retention
Insulation Color	Natural	Natural
Insulation Height	-	0.185 - 0.24 in
Insulation Height	-	4.7 - 6.1 mm
Insulation Height [custom]	5.51 mm	5.51 mm
Insulation Height [custom]	0.217 in	0.217 in
Insulation Material	Polyamide (PA9T), Nylon 9T	Polyamide (PA66), Nylon 6/6, Liquid Crystal Polymer (LCP), Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount, Right Angle	Through Hole, Through Hole, Right Angle, Surface Mount, Surface Mount, Right Angle
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 - 105 ░C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-502 Series

PIN HEADER, WIRE-TO-BOARD, 2 MM, 1 ROWS, 2 CONTACTS, THROUGH HOLE STRAIGHT, 140 SERIES

Part	Termination	Style	Voltage Rating	Shrouding	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Number of Positions	Material Flammability Rating	Contact Material	Number of Rows	Insulation Color	Connector Type	Insulation Height	Insulation Height	Mounting Type	Insulation Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Contact Finish - Post	Features	Insulation Height [custom]	Insulation Height [custom]
EDAC Inc. 140-502-415-101	Solder	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Detent Lock	0.079 in	2 mm	Male Pin	2	UL94 V-0	Brass	1	Natural	Header	0.24 in	6.1 mm	Through Hole	Polyamide (PA66), Nylon 6/6	All	-40 °C	105 ░C	2 A	Square	Tin
EDAC Inc. 140-502-415-000	Kinked Pin, Solder	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Detent Lock	0.079 in	2 mm	Male Pin	2	UL94 V-0	Brass	1	Natural	Header	0.197 in	5 mm	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	All	-40 °C	105 ░C	2 A	Square	Tin
EDAC Inc. 140-502-417-011	Solder	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Detent Lock	0.079 in	2 mm	Male Pin	2	UL94 V-0	Brass	1	Natural	Header			Surface Mount	Liquid Crystal Polymer (LCP)	All	-40 °C	105 ░C	2 A	Square	Tin	Solder Retention	5.51 mm	0.217 in
EDAC Inc. 140-502-415-100	Solder	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Detent Lock	0.079 in	2 mm	Male Pin	2	UL94 V-0	Brass	1	Natural	Header	0.185 in	4.7 mm	Through Hole, Right Angle	Polyamide (PA66), Nylon 6/6	All	-40 °C	105 ░C	2 A	Square	Tin
EDAC Inc. 140-502-415-001	Kinked Pin, Solder	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Detent Lock	0.079 in	2 mm	Male Pin	2	UL94 V-0	Brass	1	Natural	Header	0.24 in	6.1 mm	Through Hole	Polyamide (PA66), Nylon 6/6	All	-40 °C	105 ░C	2 A	Square	Tin
EDAC Inc. 140-502-417-060	Solder	Board to Cable/Wire	100 VAC	Shrouded - 4 Wall	Detent Lock	0.079 in	2 mm	Male Pin	2	UL94 V-0	Brass	1	Natural	Header			Surface Mount, Right Angle	Nylon 9T, Polyamide (PA9T)	All	-25 °C	85 °C	2 A	Square	Tin	Solder Retention	5.51 mm	0.217 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.42
		10	$ 0.37
		25	$ 0.33
		50	$ 0.32
		100	$ 0.30
		250	$ 0.28
		500	$ 0.26
	Digi-Reel®	1	$ 0.42
		10	$ 0.37
		25	$ 0.33
		50	$ 0.32
		100	$ 0.30
		250	$ 0.28
		500	$ 0.26
	Tape & Reel (TR)	1000	$ 0.20
		2000	$ 0.18
		3000	$ 0.18
		5000	$ 0.17
		7000	$ 0.16

Description

General part information

140-502 Series

Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm)
