V708-75/2-210

Active

Boyd Laconia, LLC

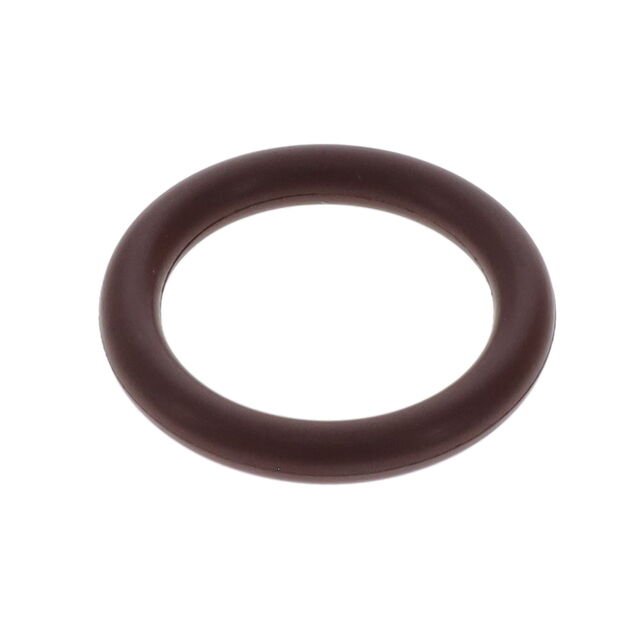

FLUOROCARBON -210 O-RING

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

FLUOROCARBON -210 O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

FLUOROCARBON -327 O-RING

Part	Width / Cross Section [x]	Width / Cross Section [x]	Hardness	Material	Dash Number	Color	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Width / Cross Section [y]	Width / Cross Section [y]	Dash Number	Diameter - Inside [diameter]
Boyd Laconia, LLC V708-75/2-327	0.21 in	5.33 mm	75 Shore A	Fluorocarbon	-327	Brown	-29 °C	204 °C	1.725 in	43.82 mm
Boyd Laconia, LLC V708-75/2-211			75 Shore A	Fluorocarbon	-211	Brown	-29 °C	204 °C	0.796 "	20.22 mm	3.53 mm	0.139 in
Boyd Laconia, LLC V708-75/2-210			75 Shore A	Fluorocarbon	-210	Brown	-29 °C	204 °C	0.734 in	18.64 mm	3.53 mm	0.139 in
Boyd Laconia, LLC V708-75/2-217			75 Shore A	Fluorocarbon		Brown	-29 °C	204 °C	1.171 in	29.74 mm	3.53 mm	0.139 in	-217
Boyd Laconia, LLC V708-75/2-009			75 Shore A	Fluorocarbon	-009	Brown	-29 °C	204 °C		0.208 "	1.78 mm	0.07 in		5.28 mm
Boyd Laconia, LLC V708-75/2-218			75 Shore A	Fluorocarbon	-218	Brown	-29 °C	204 °C	1.234 in	31.34 mm	3.53 mm	0.139 in
Boyd Laconia, LLC V708-75/2-112			75 Shore A	Fluorocarbon	-112	Brown	-29 °C	204 °C	0.487 in	12.37 mm	2.62 mm	0.103 in
Boyd Laconia, LLC V708-75/2-116			75 Shore A	Fluorocarbon	-116	Brown	-29 °C	204 °C	0.737 in	18.72 mm	2.62 mm	0.103 in
Boyd Laconia, LLC V708-75/2-011			75 Shore A	Fluorocarbon	-011	Brown	-29 °C	204 °C	0.301 in	7.65 mm	1.78 mm	0.07 in
Boyd Laconia, LLC V708-75/2-006			75 Shore A	Fluorocarbon	-006	Brown	-29 °C	204 °C	0.114 in	2.9 mm	1.78 mm	0.07 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
