28672.4
ActiveConta-Clip, Inc.

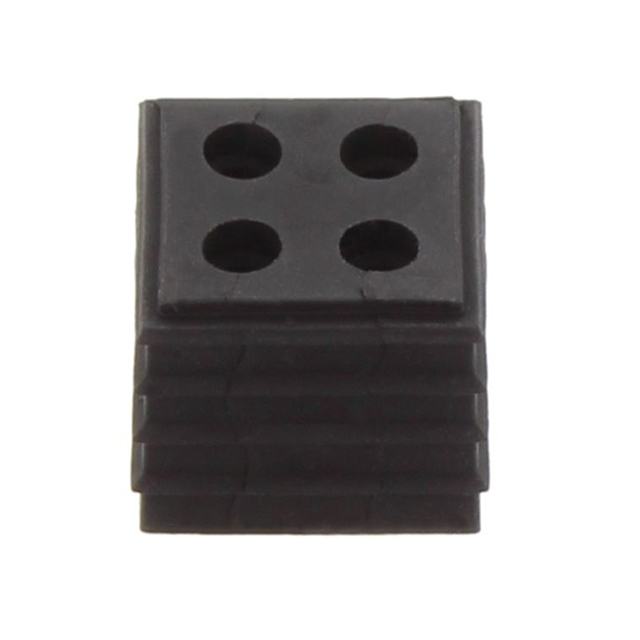

KDS SEALING SLEEVE MULTI 5MM
Deep-Dive with AI
Search across all available documentation for this part.
28672.4
ActiveConta-Clip, Inc.
KDS SEALING SLEEVE MULTI 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28672.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 0.201 in |
| Diameter - Inside [Max] [diameter] | 5.1 mm |
| Diameter - Inside [Min] [diameter] | 4.7 mm |
| Diameter - Inside [Min] [diameter] | 0.185 in |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | 4 Cable Openings |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [x] | 20.3 mm |
| Panel Cutout Dimensions [x] | 0.799 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.00 | |
| 5 | $ 4.86 | |||
| 10 | $ 4.73 | |||
| 25 | $ 4.60 | |||
| 50 | $ 4.34 | |||
| 100 | $ 4.21 | |||
| 250 | $ 3.81 | |||
| 500 | $ 3.68 | |||
| 1000 | $ 3.55 | |||
Description
General part information
28672 Series
Square - 0.799" (20.30mm) Frame Grommet, Split 0.185" ~ 0.201" (4.70mm ~ 5.10mm) Black
Documents
Technical documentation and resources
No documents available
