AXT616124

Active

Panasonic Electric Works

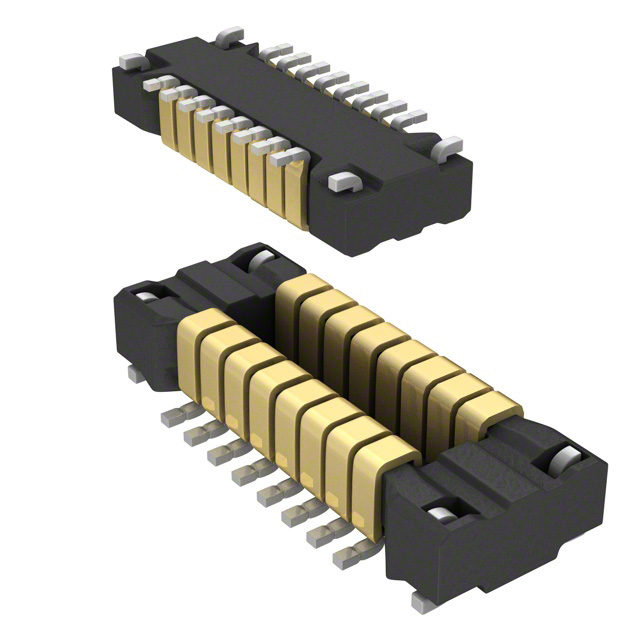

CONN HDR 16POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 16POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT616124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	16
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Connector Type	Number of Positions	Mated Stacking Heights	Mounting Type
Panasonic Electric Works AXT616124	Gold	0.016 in	0.4 mm	0.84 mm	0.033 "	2	Solder Retention	Header Center Strip Contacts	16	1 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Connector Header, Center Strip Contacts Surface Mount Gold
