7101-12-1010
ActiveCoto Technology

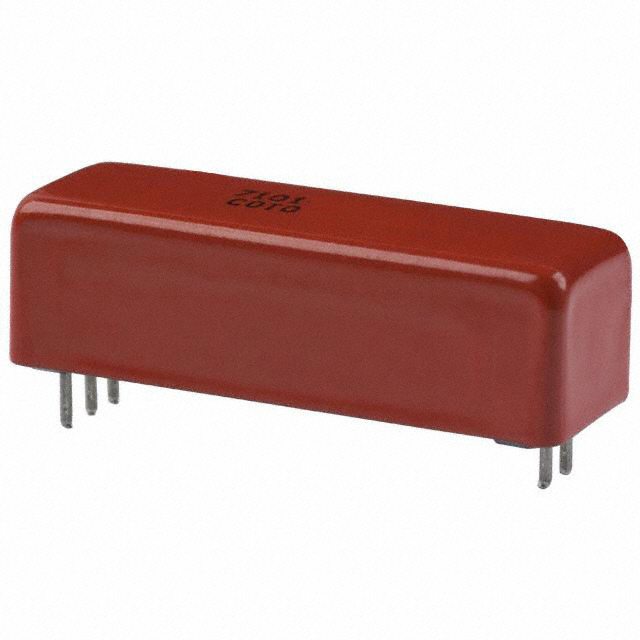

RELAY REED SPST 500MA 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7101-12-1010
ActiveCoto Technology
RELAY REED SPST 500MA 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7101-12-1010 | 7101 Series |
|---|---|---|
| Coil Current | 7.5 mA | 5.7 - 16.7 mA |
| Coil Resistance | 1.6 kOhms | 1.6 - 300 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 5 - 24 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A | 0.5 A |
| Features | Electrostatic Shield | Electrostatic Shield, Diode |
| Mounting Type | Through Hole | Through Hole |
| Must Operate Voltage | 9 VDC | 3.75 - 18 VDC |
| Must Release Voltage | 1 VDC | 0.4 - 2 VDC |
| Operate Time | 1 ms | 1 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Release Time | 0.1 ms | 0.1 ms |
| Switching Voltage | 200 VDC, 200 VAC | 200 VDC |
| Termination Style | PC Pin | PC Pin |
7101 Series
RELAY REED SPST 500MA 5V
| Part | Coil Resistance | Release Time | Contact Rating (Current) | Coil Type | Contact Form | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Coil Voltage | Coil Current | Must Release Voltage | Mounting Type | Switching Voltage | Features | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Coto Technology 7101-05-1110 | 300 Ohms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 5 VDC | 16.7 mA | 0.4 VDC | Through Hole | 200 VDC, 200 VAC | Electrostatic Shield | 3.75 VDC |
Coto Technology 7101-24-1000 | 4.2 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 24 VDC | 5.7 mA | 2 VDC | Through Hole | 200 VDC, 200 VAC | 18 VDC | |
Coto Technology 7101-12-1000 | 1.6 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 12 VDC | 7.5 mA | 1 VDC | Through Hole | 200 VDC, 200 VAC | 9 VDC | |
Coto Technology 7101-24-1010 | 4.2 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 24 VDC | 5.7 mA | 2 VDC | Through Hole | 200 VDC, 200 VAC | Electrostatic Shield | 18 VDC |
Coto Technology 7101-05-1000 | 300 Ohms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 5 VDC | 16.7 mA | 0.4 VDC | Through Hole | 200 VDC, 200 VAC | 3.75 VDC | |
Coto Technology 7101-24-1100 | 4.2 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 24 VDC | 5.7 mA | 2 VDC | Through Hole | 200 VDC, 200 VAC | 18 VDC | |
Coto Technology 7101-12-1010 | 1.6 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 12 VDC | 7.5 mA | 1 VDC | Through Hole | 200 VDC, 200 VAC | Electrostatic Shield | 9 VDC |
Coto Technology 7101-12-1110 | 1.6 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 12 VDC | 7.5 mA | 1 VDC | Through Hole | 200 VDC, 200 VAC | Electrostatic Shield | 9 VDC |
Coto Technology 7101-12-1100 | 1.6 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 12 VDC | 7.5 mA | 1 VDC | Through Hole | 200 VDC, 200 VAC | 9 VDC | |
Coto Technology 7101-12-1011 | 1.6 kOhms | 0.1 ms | 0.5 A | Non Latching | SPST-NO (1 Form A) | 1 ms | 85 °C | -20 C | PC Pin | 12 VDC | 7.5 mA | 1 VDC | Through Hole | 200 VDC, 200 VAC | Diode, Electrostatic Shield | 9 VDC |
