7101-24-1010

Obsolete

Coto Technology

RELAY COTO STANDARD CD REV. 00 BOM/MFG D/S 12/05 /TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

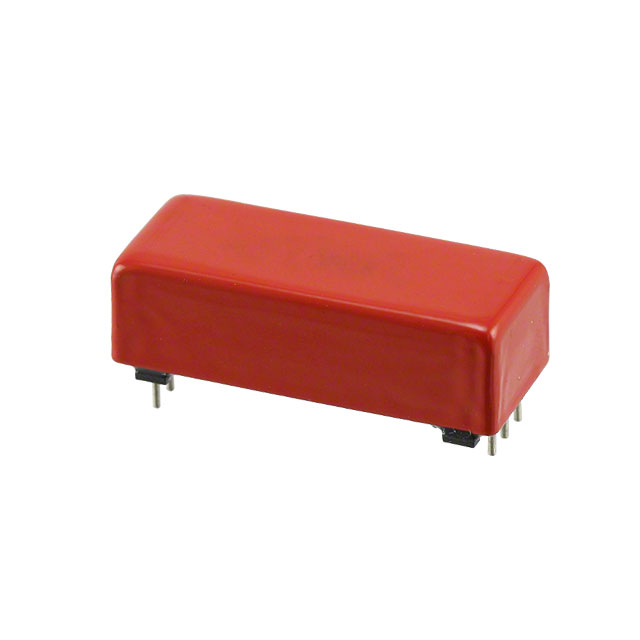

7101-24-1010

Obsolete

Coto Technology

RELAY COTO STANDARD CD REV. 00 BOM/MFG D/S 12/05 /TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7101-24-1010	7101 Series

Coil Current	5.7 mA	5.7 - 16.7 mA
Coil Resistance	4.2 kOhms	1.6 - 300 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	5 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Features	Electrostatic Shield	Electrostatic Shield, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	3.75 - 18 VDC
Must Release Voltage	2 VDC	0.4 - 2 VDC
Operate Time	1 ms	1 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

7101 Series

RELAY REED SPST 500MA 5V

Part	Coil Resistance	Release Time	Contact Rating (Current)	Coil Type	Contact Form	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Voltage	Coil Current	Must Release Voltage	Mounting Type	Switching Voltage	Features	Must Operate Voltage
Coto Technology 7101-05-1110	300 Ohms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	5 VDC	16.7 mA	0.4 VDC	Through Hole	200 VDC, 200 VAC	Electrostatic Shield	3.75 VDC
Coto Technology 7101-24-1000	4.2 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	24 VDC	5.7 mA	2 VDC	Through Hole	200 VDC, 200 VAC		18 VDC
Coto Technology 7101-12-1000	1.6 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	12 VDC	7.5 mA	1 VDC	Through Hole	200 VDC, 200 VAC		9 VDC
Coto Technology 7101-24-1010	4.2 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	24 VDC	5.7 mA	2 VDC	Through Hole	200 VDC, 200 VAC	Electrostatic Shield	18 VDC
Coto Technology 7101-05-1000	300 Ohms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	5 VDC	16.7 mA	0.4 VDC	Through Hole	200 VDC, 200 VAC		3.75 VDC
Coto Technology 7101-24-1100	4.2 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	24 VDC	5.7 mA	2 VDC	Through Hole	200 VDC, 200 VAC		18 VDC
Coto Technology 7101-12-1010	1.6 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	12 VDC	7.5 mA	1 VDC	Through Hole	200 VDC, 200 VAC	Electrostatic Shield	9 VDC
Coto Technology 7101-12-1110	1.6 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	12 VDC	7.5 mA	1 VDC	Through Hole	200 VDC, 200 VAC	Electrostatic Shield	9 VDC
Coto Technology 7101-12-1100	1.6 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	12 VDC	7.5 mA	1 VDC	Through Hole	200 VDC, 200 VAC		9 VDC
Coto Technology 7101-12-1011	1.6 kOhms	0.1 ms	0.5 A	Non Latching	SPST-NO (1 Form A)	1 ms	85 °C	-20 C	PC Pin	12 VDC	7.5 mA	1 VDC	Through Hole	200 VDC, 200 VAC	Diode, Electrostatic Shield	9 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	100	$ 15.68
		250	$ 14.25

Description

General part information

7101 Series

RELAY COTO STANDARD CD REV. 00 BOM/MFG D/S 12/05 /TUBE
