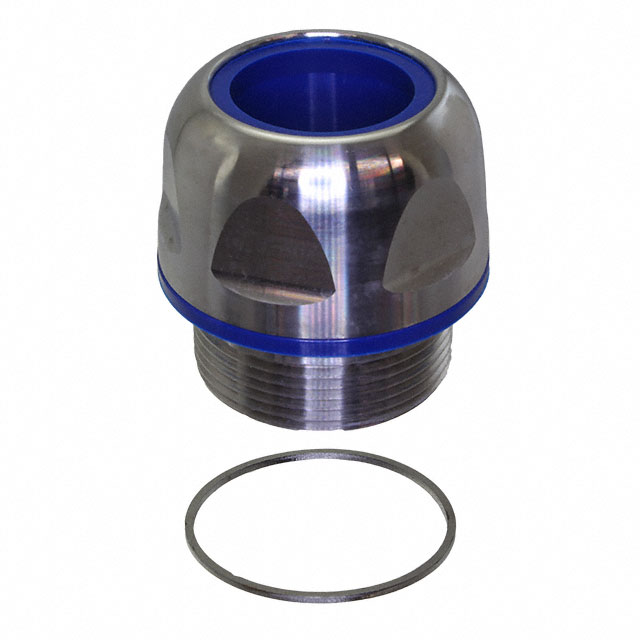

BG232VA21CP

Active

Pflitsch

CABLE GLAND 18.01-21MM M32

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 18.01-21MM M32

Technical Specifications

Parameters and characteristics for this part

Specification	BG232VA21CP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Panel Hole Size	1.26 in
Panel Hole Size	32 mm
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	M32x1.5
Type	Cable Gland

Part	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Color	Thread Size	Type	Material	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Includes
Pflitsch BG232VA21CP	0.433 in	11 mm	0.709 in	18.01 mm	1.26 in	32 mm	Silver	M32x1.5	Cable Gland	Stainless Steel	IP66 IP68 IP69	21 mm	0.827 in	85 °C	-40 °C	Sealing Ring
Pflitsch BG232VATRICP	0.472 in	12 mm	0.79 "	20.07 mm	1.26 in	32 mm	Silver	M32x1.5	Cable Gland	Brass Nickel Plated	IP68/IP69 - Dust Tight Water Resistant Waterproof	23.11 mm	0.91 in	85 °C	-40 °C	Sealing Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 89.91

General part information

Cable Gland Stainless Steel M32x1.5 Silver
