DMN6070SFCL-7
ActiveDiodes Inc

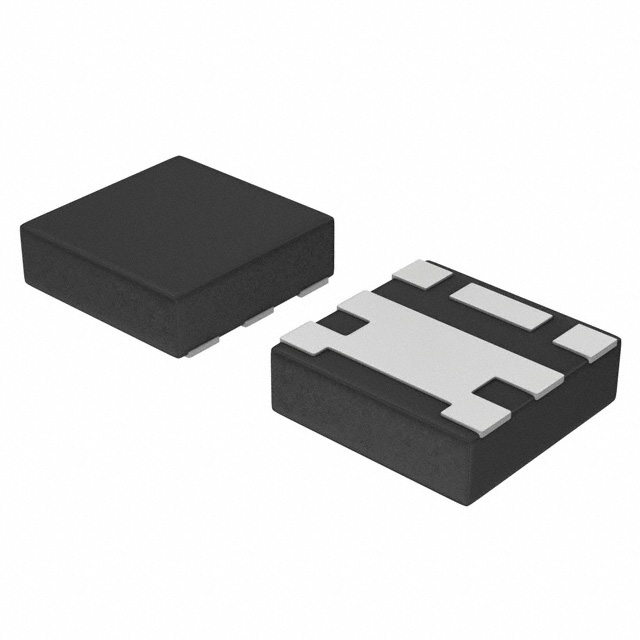

TRANS MOSFET N-CH 60V 3A 6-PIN DFN T/R
Deep-Dive with AI
Search across all available documentation for this part.
DMN6070SFCL-7
ActiveDiodes Inc
TRANS MOSFET N-CH 60V 3A 6-PIN DFN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN6070SFCL-7 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) [Max] | 4 V |
| Drive Voltage (Max Rds On, Min Rds On) [Min] | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 12.3 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 606 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-PowerUFDFN |
| Power Dissipation (Max) [Max] | 600 mW |
| Rds On (Max) @ Id, Vgs | 85 mOhm |
| Supplier Device Package | X1-DFN1616-6 (Type E) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.43 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.16 | |||
| Digi-Reel® | 1 | $ 0.43 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.26 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 30000 | $ 0.13 | |||
Description
General part information
DMN6070SFCL Series
This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
