GF-1123 Series

Part	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Contact Material	Mounting Type	Voltage Rating - DC	Switch Function	Termination Style	Circuit	Actuator Type	Voltage Rating - AC	Actuator Length	Electrical Life (Cycles)	Actuator Material	Switch Travel	Mechanical Life (Cycles)	Features

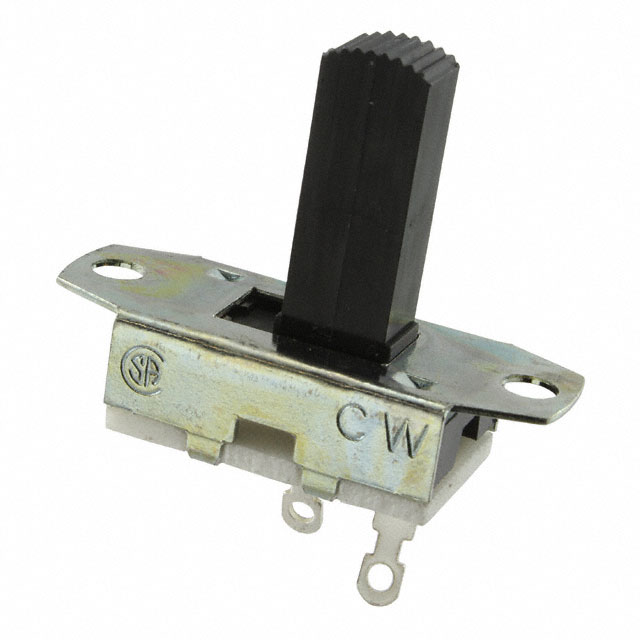

CW Industries GF-1123-0013	0.5 A 11 A	104 °C	-10 °C	Silver	Copper	Panel Mount	125 V	On-Off	Wire Wrap	SPST	Standard	125 V	19.05 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Cycles
CW Industries GF-1123-0000	0.5 A 11 A	104 °C	-10 °C	Silver	Copper	Panel Mount	125 V	On-Off	Solder Lug	SPST	Standard	125 V	8.74 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Cycles
CW Industries GF-1123-0025	0.5 A 11 A	104 °C	-10 °C	Silver	Copper	Panel Mount	125 V	On-Off	Wire Wrap	SPST	Standard	125 V	8.89 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Cycles	White Actuator
CW Industries GF-1123-1110	0.5 A 11 A	104 °C	-10 °C	Silver	Copper	Panel Mount	125 V	On-Off	PC Pin	SPST	Standard	125 V	8.74 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Cycles
CW Industries GF-1123-0027	0.5 A 11 A	104 °C	-10 °C	Silver	Copper	Panel Mount	125 V	On-Off	Wire Wrap	SPST	Standard	125 V	8.89 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Cycles
CW Industries GF-1123-0009	0.5 A 11 A	104 °C	-10 °C	Silver	Copper	Panel Mount	125 V	On-Off	Solder Lug	SPST	Standard	125 V	8.74 mm	6000 Cycles	Nylon 6/6 Polyamide (PA66)	4.01 mm	10000 Cycles
