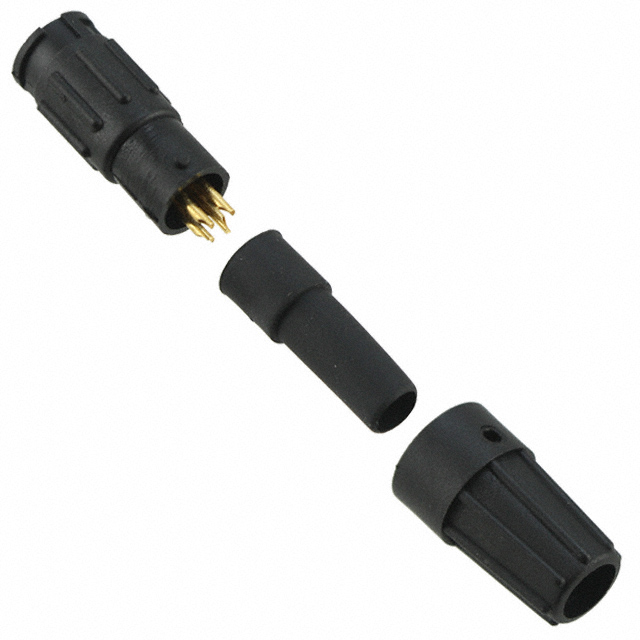

18882-4SG-522

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	18882-4SG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Mounting Type	Applications	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Ingress Protection	Color	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Orientation	Shielding	Connector Type	Fastening Type	Contact Material	Contact Finish - Mating	Features	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Backshell Material, Plating
Conxall/Switchcraft 18882-4SG-522	Free Hanging (In-Line)	Data, Industrial, Instrumentation, Medical	5.84 mm	0.22 in	5.59 mm	0.23 in	IP67 - Dust Tight, Waterproof	Black	6 A	4	UL94 HB	Keyed	Unshielded	Receptacle, Female Sockets	Bayonet Lock	Copper Alloy	Gold	Backshell	600 VAC	85 °C	-40 °C	Plastic	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
