Q-010600001003i

Active

Amphenol Custom Cable

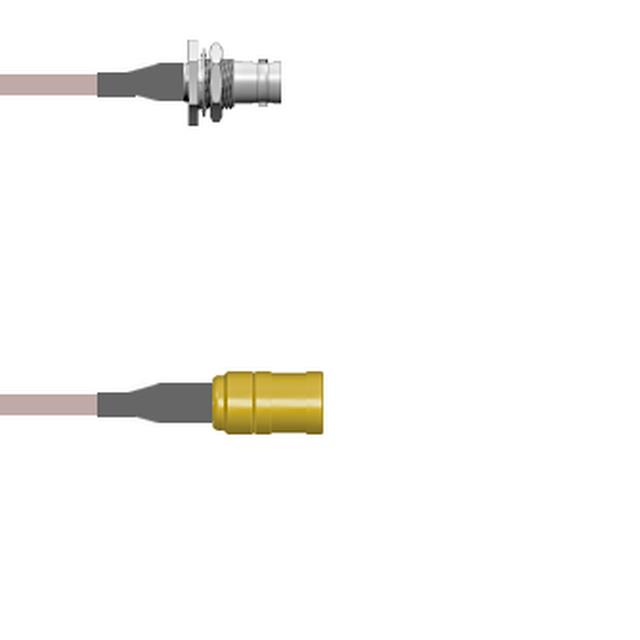

CBL ASSY BNC-SMB JACK-PLUG 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-010600001003i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-PLUG 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-010600001003i	Q-010600 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	SMB Plug	SMB Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	3 in	3 - 118.1 "
Length	76.2 mm	1 - 1200 mm
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	457.2 mm
Length	-	3.3 - 9.8 ft
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to SMB	BNC to SMB

Q-010600 Series

CBL ASSY BNC-SMB JACK-PLUG 24"

Part	1st Connector Mounting Feature	1st Connector	Features	Frequency - Max [Max]	Style	2nd Connector	Cable Type	1st Contact Gender	1st Connector Mounting Type	2nd Contact Gender	Length	Length	2nd Connector Mounting Type	Overall Impedance	Color	Length [x]	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-010600001024i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	24 "	609.6 mm	Free Hanging (In-Line)	50 Ohms	Copper
Amphenol Custom Cable Q-010600001003i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	3 in	76.2 mm	Free Hanging (In-Line)	50 Ohms	Copper
Amphenol Custom Cable Q-010600001.25M	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male			Free Hanging (In-Line)	50 Ohms	Copper	9.843 "	250 mm
Amphenol Custom Cable Q-010600001018i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male			Free Hanging (In-Line)	50 Ohms	Copper		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0106000010.5M	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	19.69 "	50 cm	Free Hanging (In-Line)	50 Ohms	Copper
Amphenol Custom Cable Q-010600001012i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	12 "	304.8 mm	Free Hanging (In-Line)	50 Ohms	Copper
Amphenol Custom Cable Q-010600001006i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	6 in	152.4 mm	Free Hanging (In-Line)	50 Ohms	Copper
Amphenol Custom Cable Q-010600001108i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	108 in	2.7 m	Free Hanging (In-Line)	50 Ohms	Copper				9 ft
Amphenol Custom Cable Q-0106000012.5M	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	98.4 in	2.5 m	Free Hanging (In-Line)	50 Ohms	Copper				8.2 '
Amphenol Custom Cable Q-010600001048i	Bulkhead - Front Side Nut	BNC Jack	Shielded	4 GHz	BNC to SMB	SMB Plug	RG-178	Female	Panel Mount	Male	48 in	1200 mm	Free Hanging (In-Line)	50 Ohms	Copper				4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.04
		25	$ 82.40
		50	$ 80.77
		100	$ 79.14
		250	$ 77.50

Description

General part information

Q-010600 Series

Cable Assembly Coaxial BNC to SMB RG-178 3.000" (76.20mm)
