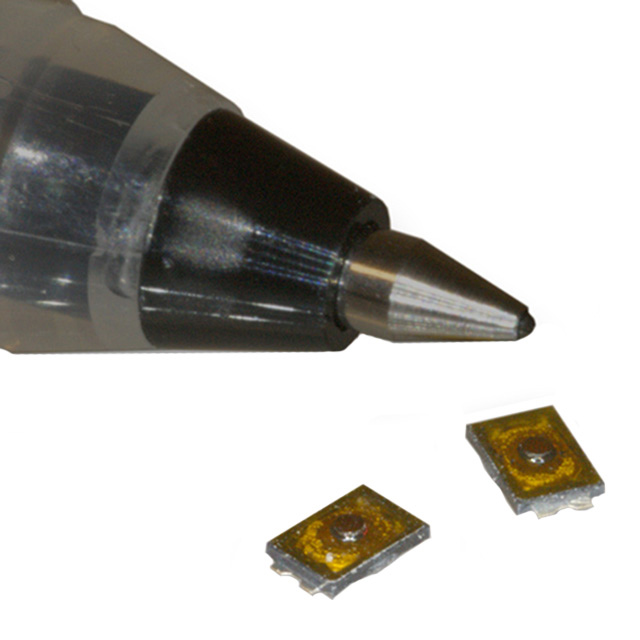

TL3750AF100QG

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3750AF100QG

Actuator Height off PCB, Vertical [z]	0.58 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	300000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	3 mm
Outline [y]	2 mm
Switch Function	Off-Mom
Switch Travel	0.13 mm
Termination Style	Gull Wing

Part	Switch Travel	Actuator Orientation	Contact Rating @ Voltage	Switch Function	Mounting Type	Illumination	Mechanical Life	Outline [x]	Outline [y]	Actuator Type	Termination Style	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Circuit
E-Switch TL3750AF100QG	0.13 mm	Top Actuated	0.05 A 12 VDC	Off-Mom	Surface Mount	Non-Illuminated	300000 Cycles	3 mm	2 mm	Standard	Gull Wing	0.58 mm	-30 ░C	85 °C	100 gf	SPST-NO
