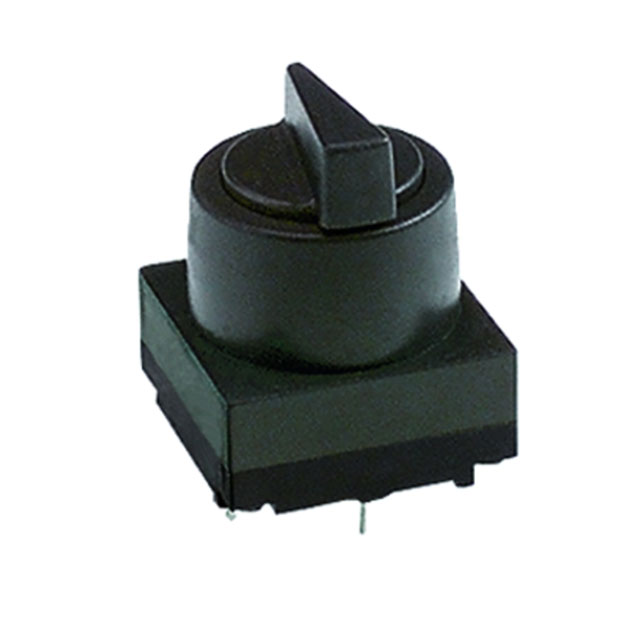

3.13.007.001/0152
ActiveRAFI USA
SWITCH SELECT 2P SPDT 100MA 35V
Deep-Dive with AI
Search across all available documentation for this part.
3.13.007.001/0152
ActiveRAFI USA
SWITCH SELECT 2P SPDT 100MA 35V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3.13.007.001/0152 |
|---|---|
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Depth Behind Flange | 24 mm |
| Electrical Life | 50000 Cycles |
| Features | Bezel - Round |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2 | $ 27.86 | |
Description
General part information
3.13.007 Series
Selector Switch 2 Position SPDT 100mA (AC/DC) 35 V Through Hole
Documents
Technical documentation and resources
No documents available
