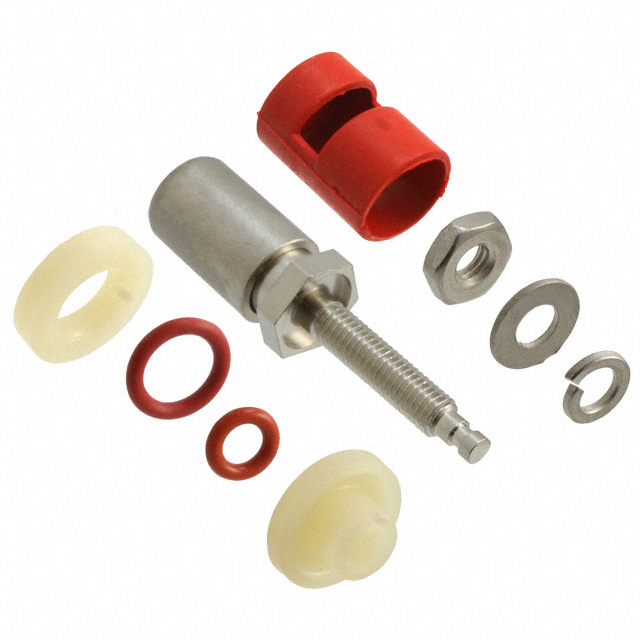

4995-2

Active

Pomona Electronics

CONN BINDING POST 1 POS SOLDER ST PANEL MOUNT 1 PORT

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BINDING POST 1 POS SOLDER ST PANEL MOUNT 1 PORT

Technical Specifications

Parameters and characteristics for this part

Part	Nut Material	Head Style	Current Rating (Amps)	Type	Termination	Plating - Body	Material - Body	Head Size [diameter]	Head Size [diameter]	Color	Voltage Rating	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
Pomona Electronics 4995-2#	Brass	Smooth Spring Loaded	15 A	Standard	Threaded Turret	Nickel	Brass	12.7 mm	0.5 " OD	Red	33 VAC 70 VDC	3.18 mm	0.125 "	0.062 in	1.57 mm
Pomona Electronics 4995-2	Brass	Smooth Spring Loaded	15 A	Standard	Threaded Turret	Nickel	Brass	12.7 mm	0.5 " OD	Red	33 VAC 70 VDC	3.18 mm	0.125 "	0.062 in	1.57 mm
Pomona Electronics 4995-0	Brass	Smooth Spring Loaded	15 A	Standard	Threaded Turret	Nickel	Brass	12.7 mm	0.5 " OD	Black	33 VAC 70 VDC	3.18 mm	0.125 "	0.062 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.89

General part information

Binding Post Connector Standard Smooth, Spring Loaded Red Nickel
