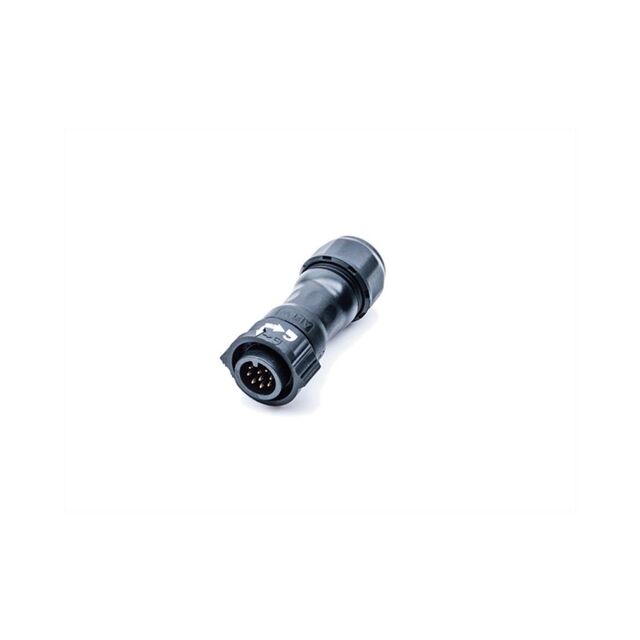

CB-05BFMA-QL8MN0

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 10A, 05 PINS

Deep-Dive with AI

Search across all available documentation for this part.

CB-05BFMA-QL8MN0

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 10A, 05 PINS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB-05BFMA-QL8MN0

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Type	For Male Pins

CB-05BFMA Series

Part	Termination	Shell Size - Insert	Connector Type	Orientation	Shielding	Voltage Rating	Backshell Material, Plating	Primary Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insert Material	Color	Mounting Type	Ingress Protection	Features	Contact Material	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Shell Material	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Note	Contact Type	Contact Shape	Housing Color	Type
Amphenol LTW CB-05BFMA-QL8AP0	Crimp	C	Male Pins Plug	Keyed	Unshielded	300 VDC	Thermoplastic	Plastic	Gold	-40 °C	105 ░C	10 A	Thermoplastic	Black	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Backshell	Copper Alloy
Amphenol LTW CB-05BFMA-QL8LP0	Crimp	C	Male Pins Plug	Keyed	Unshielded	300 VAC		Plastic	Gold	-40 °C	105 ░C	10 A	Polyamide (PA) Nylon Glass Filled	Black	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Backshell	Copper Alloy	Push-Pull	10 mm 12 mm	0.394 in 0.472 in	5	Glass Filled Nylon Polyamide (PA)	UL94 V-0
Amphenol LTW CB-05BFMA-QL8SP0	Crimp	C	Male Pins Plug	Keyed	Unshielded	300 VAC		Plastic	Gold	-40 °C	105 ░C	10 A	Polyamide (PA) Nylon Glass Filled	Black	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Backshell	Copper Alloy	Push-Pull			5	Glass Filled Nylon Polyamide (PA)	UL94 V-0	8 mm	6 mm	0.315 in	0.236 in
Amphenol LTW CB-05BFMA-SL7001		C	Male Pins Plug	Keyed	Unshielded		Nylon Polyamide (PA)	Plastic	Gold				Polyamide (PA) Nylon Glass Filled	Black	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Copper Alloy					Glass Filled Nylon Polyamide (PA)
Amphenol LTW CB-05BFMA-QL8MN0		C	Plug Housing	Keyed	Unshielded			Plastic		-40 °C	105 ░C		Thermoplastic		Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Backshell												Contacts Not Included	Crimp	Circular	Black	For Male Pins
Amphenol LTW CB-05BFMA-QL8LN0		C	Plug Housing	Keyed	Unshielded			Plastic		-40 °C	105 ░C		Thermoplastic		Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Backshell		Push-Pull										Contacts Not Included	Crimp	Circular	Black	For Male Pins
Amphenol LTW CB-05BFMA-LL7001		C	Male Pins Plug	Keyed	Unshielded		Nylon Polyamide (PA)	Plastic	Gold				Polyamide (PA) Nylon Glass Filled	Black	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Copper Alloy					Glass Filled Nylon Polyamide (PA)
Amphenol LTW CB-05BFMA-QL8AN0		C	Plug Housing	Keyed	Unshielded			Plastic		-40 °C	105 ░C		Thermoplastic		Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Backshell		Push-Pull										Contacts Not Included	Crimp	Circular	Black	For Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 5.83

Description

General part information

CB-05BFMA Series

5 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell

Documents

Technical documentation and resources

No documents available
