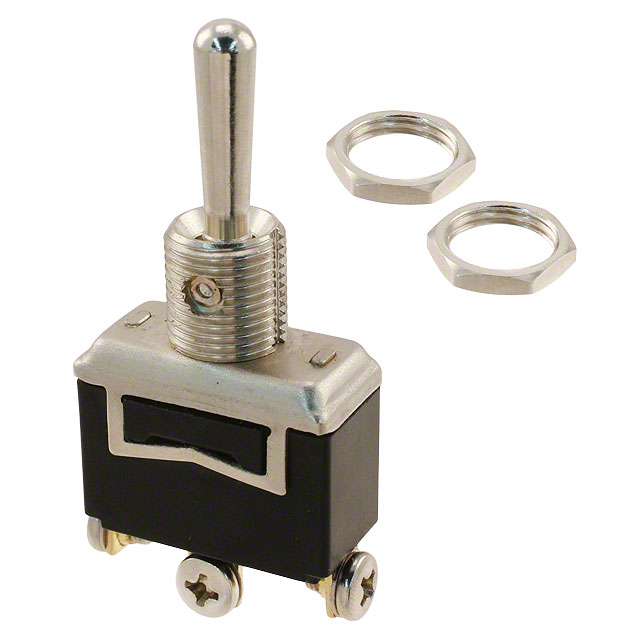

ST16DD00

Active

E-Switch

SWITCH TOGGLE SPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	ST16DD00

Actuator Length [x]	19.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Bushing Thread	Bushing Thread	Electrical Life	Operating Temperature [Max]	Circuit	Actuator Type	Termination Style	Illumination	Current Rating (Amps)	Actuator Material	Voltage Rating - AC	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Switch Function
E-Switch ST16MD00	M12	1 x 1	6000 Cycles	85 °C	SPST	Standard Round	Screw Terminal	Non-Illuminated	20 A	Brass Nickel Plated	125 V	19.5 mm	12 mm	On-Off
E-Switch ST16MD02	15/32-32		6000 Cycles	85 °C	SPST	Standard Round	Screw Terminal	Non-Illuminated	20 A	Brass Nickel Plated	125 V	19.5 mm	12 mm	On-Off
E-Switch ST16DD00	M12	1 x 1	6000 Cycles	85 °C	SPDT	Standard Round	Screw Terminal	Non-Illuminated	20 A	Brass Nickel Plated	125 V	19.5 mm	12 mm	Mom-Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount

Technical documentation and resources

No documents available
