VES150PS24

Obsolete

XP Power

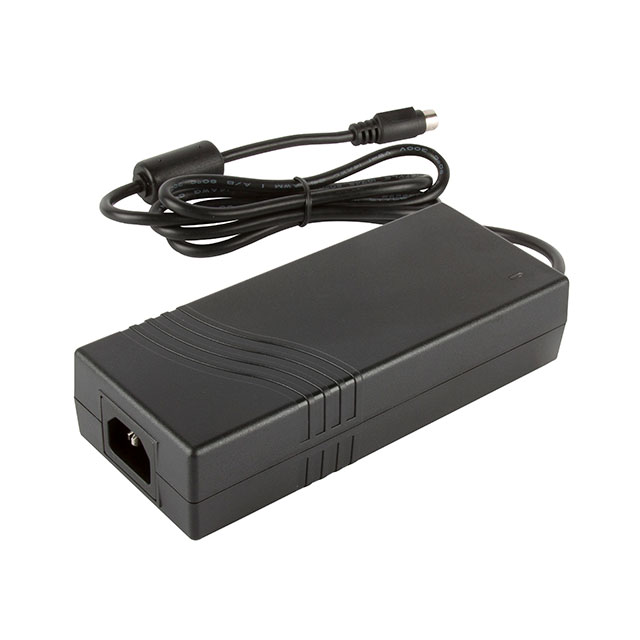

AC/DC DESKTOP ADAPTER 24V 150W

Search across all available documentation for this part.

Obsolete

XP Power

AC/DC DESKTOP ADAPTER 24V 150W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VES150PS24	VES150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CCC, TUV, UL	CB, CCC, TUV, UL
Cord Length	1.2 m	1.2 m
Cord Length	47.2 in	47.2 in
Current - Output (Max) [Max]	6.25 A	6.25 - 12.5 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Desktop (Class I)	Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption [Max]	150 mW	150 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Connector	4 Pin	4 Pin
Output Connector	Power DIN	Power DIN
Power (Watts)	150 W	148 - 150 W
Region Utilized	International	International
Size / Dimension [x]	6.66 in	6.66 in
Size / Dimension [x]	169.2 mm	169.2 mm
Size / Dimension [y]	2.79 in	2.79 in
Size / Dimension [y]	70.9 mm	70.9 mm
Size / Dimension [z]	1.56 in	1.56 in
Size / Dimension [z]	39.6 mm	39.6 mm
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	24 V	12 - 24 V

AC/DC DESKTOP ADAPTER 19V 148W

Part	Standard Number	Applications	No Load Power Consumption [Max]	Region Utilized	Cord Length	Cord Length	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Output	Current - Output (Max) [Max]	Form	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector	Output Connector	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Power (Watts)
XP Power VES150PS19	62368-1	ITE (Commercial)	150 mW	International	1.2 m	47.2 in	1.56 in	6.66 in	2.79 in	70.9 mm	39.6 mm	169.2 mm	CoC Tier 2, Level VI	19 V	7.8 A	Desktop (Class I)	IEC 320-C14	-10 °C	60 °C	4 Pin	Power DIN	Cord	90 VAC	264 VAC	CB, CCC, TUV, UL	148 W
XP Power VES150PS24	62368-1	ITE (Commercial)	150 mW	International	1.2 m	47.2 in	1.56 in	6.66 in	2.79 in	70.9 mm	39.6 mm	169.2 mm	CoC Tier 2, Level VI	24 V	6.25 A	Desktop (Class I)	IEC 320-C14	-10 °C	60 °C	4 Pin	Power DIN	Cord	90 VAC	264 VAC	CB, CCC, TUV, UL	150 W
XP Power VES150PS12	62368-1	ITE (Commercial)	150 mW	International	1.2 m	47.2 in	1.56 in	6.66 in	2.79 in	70.9 mm	39.6 mm	169.2 mm	CoC Tier 2, Level VI	12 V	12.5 A	Desktop (Class I)	IEC 320-C14	-10 °C	60 °C	4 Pin	Power DIN	Cord	90 VAC	264 VAC	CB, CCC, TUV, UL	150 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
