826664-8

Active

TE Connectivity AMP Connectors

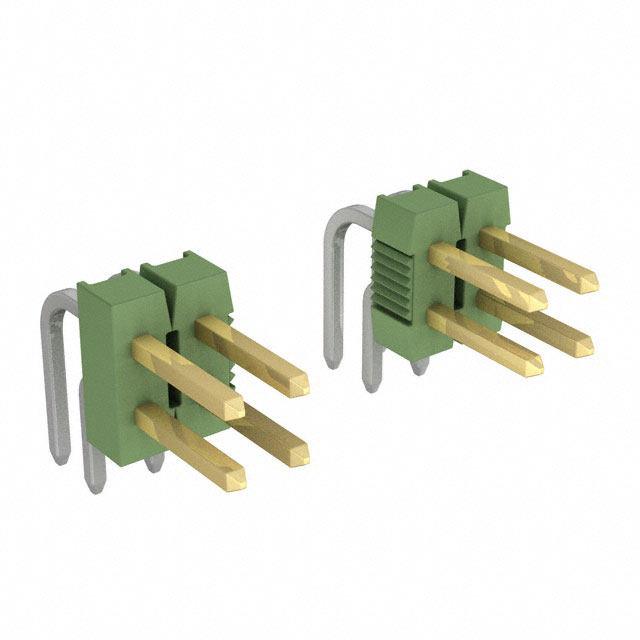

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

826664-8

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 16POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	826664-8	826664 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Mating	8 mm	8 mm
Contact Length - Mating	0.315 in	0.315 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	5.56 mm	5.56 mm
Insulation Height [z]	0.219 in	0.219 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	16	16
Number of Positions	-	6 - 20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

826664 Series

CONN HEADER R/A 16POS 2.54MM

Part	Insulation Material	Contact Length - Mating	Contact Length - Mating	Shrouding	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Contact Shape	Termination	Mounting Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Insulation Height [z]	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Color	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish - Post	Number of Positions
TE Connectivity AMP Connectors 826664-8	Polybutylene Terephthalate (PBT)	8 mm	0.315 in	Unshrouded	Push-Pull	0.099 µm	3.9 µin	All	3.2 mm	0.126 in	Square	Solder	Through Hole, Right Angle	5 A	2.54 mm	0.1 in	Brass	16	0.219 in	5.56 mm	3 µm	118.1 µin	Board to Board, Cable	Breakaway, Header	UL94 V-0	0.1 in	2.54 mm	Male Pin	Green	Gold	-65 ░C	105 ░C	2	Tin
TE Connectivity AMP Connectors 826664-4	Polybutylene Terephthalate (PBT)	8 mm	0.315 in	Unshrouded	Push-Pull	0.099 µm	3.9 µin	All	3.2 mm	0.126 in	Square	Solder	Through Hole, Right Angle	5 A	2.54 mm	0.1 in	Brass		0.219 in	5.56 mm	3 µm	118.1 µin	Board to Board, Cable	Breakaway, Header	UL94 V-0	0.1 in	2.54 mm	Male Pin	Green	Gold	-65 ░C	105 ░C	2	Tin	8
TE Connectivity AMP Connectors 1-826664-0	Polybutylene Terephthalate (PBT)	8 mm	0.315 in	Unshrouded	Push-Pull	0.099 µm	3.9 µin	All	3.2 mm	0.126 in	Square	Solder	Through Hole, Right Angle	5 A	2.54 mm	0.1 in	Brass		0.219 in	5.56 mm	3 µm	118.1 µin	Board to Board, Cable	Breakaway, Header	UL94 V-0	0.1 in	2.54 mm	Male Pin	Green	Gold	-65 ░C	105 ░C	2	Tin	20
TE Connectivity AMP Connectors 826664-5	Polybutylene Terephthalate (PBT)	8 mm	0.315 in	Unshrouded	Push-Pull	0.099 µm	3.9 µin	All	3.2 mm	0.126 in	Square	Solder	Through Hole, Right Angle	5 A	2.54 mm	0.1 in	Brass		0.219 in	5.56 mm	3 µm	118.1 µin	Board to Board, Cable	Breakaway, Header	UL94 V-0	0.1 in	2.54 mm	Male Pin	Green	Gold	-65 ░C	105 ░C	2	Tin	10
TE Connectivity AMP Connectors 826664-3	Polybutylene Terephthalate (PBT)	8 mm	0.315 in	Unshrouded	Push-Pull	0.099 µm	3.9 µin	All	3.2 mm	0.126 in	Square	Solder	Through Hole, Right Angle	5 A	2.54 mm	0.1 in	Brass		0.219 in	5.56 mm	3 µm	118.1 µin	Board to Board, Cable	Breakaway, Header	UL94 V-0	0.1 in	2.54 mm	Male Pin	Green	Gold	-65 ░C	105 ░C	2	Tin	6
