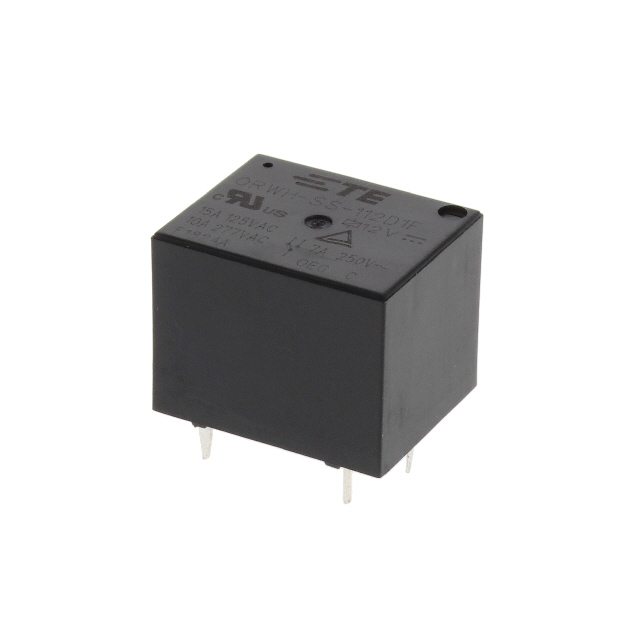

ORWH-SS-112D1F,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ORWH-SS-112D1F,000
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ORWH-SS-112D1F,000 |
|---|---|
| Approval Agency | cURus, TUV |
| Coil Current | 30 mA |
| Coil Insulation | Class F |
| Coil Resistance | 400 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Zinc Oxide (AgZnO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 2770 VA, 280 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 277 VAC, 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.68 | |
| 10 | $ 2.39 | |||
| 25 | $ 2.28 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.13 | |||
| 250 | $ 2.03 | |||
| 500 | $ 1.96 | |||
| 1000 | $ 1.89 | |||
| 5000 | $ 1.75 | |||
Description
General part information
ORWH-SS Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
