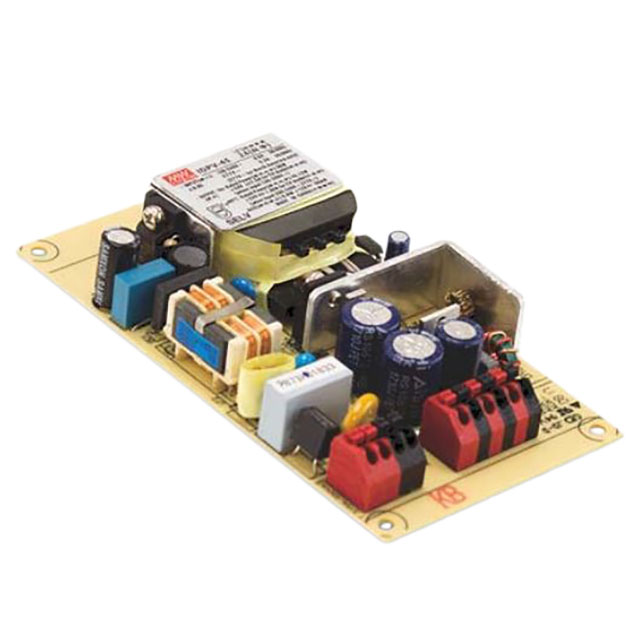

IDPV-45-12

Obsolete

MEAN WELL USA Inc.

O/P 12V3.0A

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

O/P 12V3.0A

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Topology	Number of Outputs	Current - Output (Max) [Max]	Voltage - Isolation	Dimming	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Features	Termination Style	Type	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Approval Agency
MEAN WELL USA Inc. IDPV-45-36
MEAN WELL USA Inc. IDPV-45-24	86 %	AC DC Converter	1	1.88 A	3750 V	Analog PWM	90 VAC	-20 C	40 °C	295 VAC	45 W	OCP SCP	Terminal Block	Constant Voltage	24 V	2.62 "	22 mm	120 mm	0.87 in	4.72 in	66.5 mm	Chassis Mount	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDPV-45A-24	86 %	AC DC Converter	1	1.88 A	3750 V	Analog PWM	90 VAC	-20 C	40 °C	295 VAC	45 W	OCP SCP	Terminal Block	Constant Voltage	24 V	2.62 "	22 mm	120 mm	0.87 in	4.72 in	66.5 mm	Chassis Mount	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDPV-45-12	84 %	AC DC Converter	1	3 A	3750 V	Analog PWM	90 VAC	-20 C	40 °C	295 VAC	36 W	OCP SCP	Terminal Block	Constant Voltage	12 V	2.62 "	22 mm	120 mm	0.87 in	4.72 in	66.5 mm	Chassis Mount	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDPV-45A-36
MEAN WELL USA Inc. IDPV-45A-12	84 %	AC DC Converter	1	3 A	3750 V	Analog PWM	90 VAC	-20 C	40 °C	295 VAC	36 W	OCP SCP	Terminal Block	Constant Voltage	12 V	2.62 "	22 mm	120 mm	0.87 in	4.72 in	66.5 mm	Chassis Mount	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDPV-45A-48

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
