15-000713

Active

Amphenol CONEC

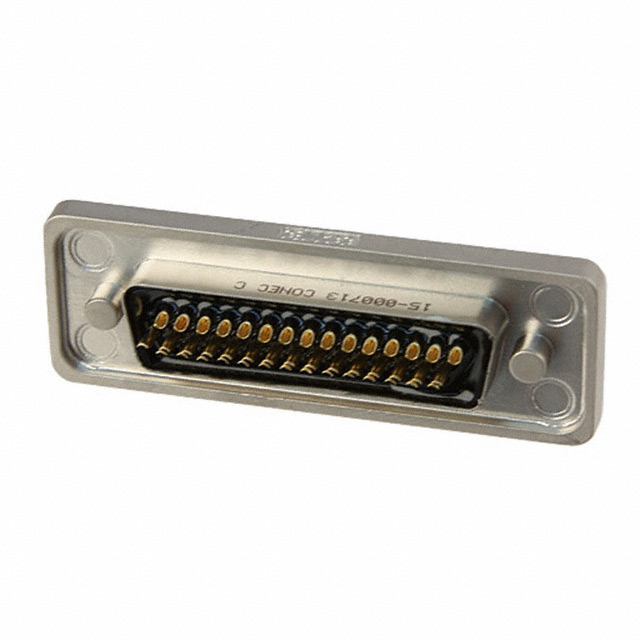

CONN D-SUB HD RCPT 44POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15-000713

Active

Amphenol CONEC

CONN D-SUB HD RCPT 44POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15-000713

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Zinc Die Cast
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Voltage Rating	60 VDC
Wire Gauge	22 AWG

15-0007 Series

Part	Contact Type	Connector Type	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Number of Positions	Termination	Dielectric Material	Number of Rows	Contact Finish	Material Flammability Rating	Connector Style	Flange Feature	Voltage Rating	Current Rating (Amps)	Ingress Protection	Color	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Wire Gauge	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing
Amphenol CONEC 15-000783	Signal	Receptacle Female Sockets	2	-25 °C	105 ░C	Copper Alloy	Board Edge Right Angle Through Hole	15	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	UL94 V-0	D-Sub	Female Screwlock (4-40) Mating Side	125 VDC	7.5 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm	Board Lock Mounting Brackets
Amphenol CONEC 15-000713	Signal	Receptacle Female Sockets		-25 °C	105 ░C	Copper Alloy		44		Polybutylene Terephthalate (PBT) Glass Filled	3	Gold	UL94 V-0	D-Sub High Density	Female Screwlock (4-40) Mating Side	60 VDC	3 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm		22 AWG	3	B DB
Amphenol CONEC 15-000703	Signal	Receptacle Female Sockets	2	-25 °C	105 ░C	Copper Alloy		26		Polybutylene Terephthalate (PBT) Glass Filled	3	Gold	UL94 V-0	D-Sub High Density	Female Screwlock (4-40) Mating Side	60 VDC	3 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm		22 AWG			(DA A) High Density
Amphenol CONEC 15-000793	Signal	Receptacle Female Sockets		-25 °C	105 ░C	Copper Alloy	Board Edge Right Angle Through Hole		Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	UL94 V-0	D-Sub	Female Screwlock (4-40) Mating Side	125 VDC	7.5 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm	Board Lock Mounting Brackets					B DB	3
Amphenol CONEC 15-000733	Signal	Male Pins Plug		-25 °C	105 ░C	Copper Alloy	Board Edge Right Angle Through Hole	9	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	UL94 V-0	D-Sub	Female Screwlock (4-40) Mating Side	125 VDC	7.5 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm	Board Lock Mounting Brackets					DE E	1	6.63 mm	0.261 in
Amphenol CONEC 15-000753	Signal	Male Pins Plug		-25 °C	105 ░C	Copper Alloy	Board Edge Right Angle Through Hole		Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	UL94 V-0	D-Sub	Female Screwlock (4-40) Mating Side	125 VDC	7.5 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm	Board Lock Mounting Brackets					B DB	3	6.63 mm	0.261 in
Amphenol CONEC 15-000773	Signal	Receptacle Female Sockets		-40 °C	105 ░C	Copper Alloy	Board Edge Right Angle Through Hole	9	Solder	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	UL94 V-0	D-Sub	Female Screwlock (4-40) Mating Side	125 VDC	7.5 A	IP67 - Dust Tight Waterproof	Black	Nickel Plated Zinc Die Cast	8 çin	0.203 çm	Board Lock Mounting Brackets					DE E	1
