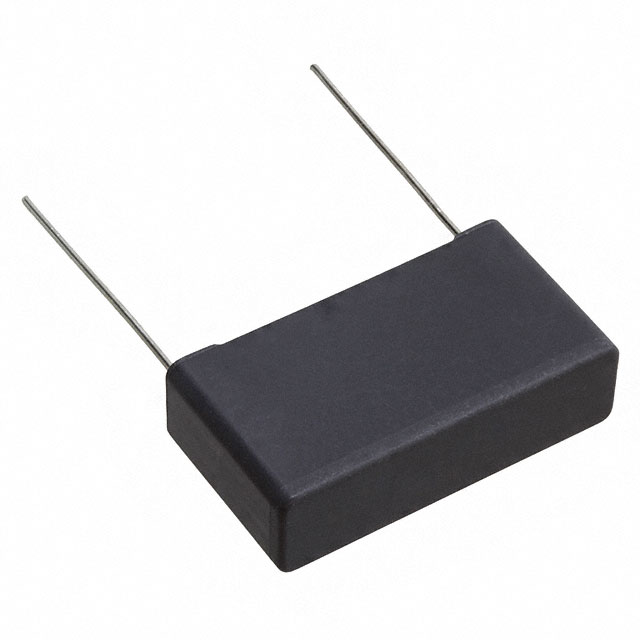

R60IR44705040K

Active

KEMET

CAP FILM 4.7UF 10% 250VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 4.7UF 10% 250VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R60IR44705040K

Applications	General Purpose
Capacitance	4.7 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max]	0.673 in
Height - Seated (Max) [Max]	17.1 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	1.26 in
Size / Dimension [x]	32 mm
Size / Dimension [y]	0.354 in
Size / Dimension [y]	9 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

Part	Mounting Type	Dielectric Material	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Applications	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - DC	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Ratings
KEMET R60IR44705040K	Through Hole	Metallized Polyester Polyethylene Terephthalate (PET)	27.5 mm	1.083 in	10 %	Radial	General Purpose	160 V	1.26 in	0.354 in	32 mm	9 mm	250 V	PC Pins	0.673 in	17.1 mm	105 ░C	-55 °C	4.7 µF
KEMET R60IR4220AA30K	Through Hole	Polyester Metallized	27.5 mm	1.083 in	10 %	Radial	Automotive	160 V	1.26 in	0.354 in	32 mm	9 mm	250 V	PC Pins	0.673 in	17.1 mm	105 ░C	-55 °C	2.2 µF	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
