301A10129X

Active

Amphenol CONEC

HD D-SUB CONN, PLUG, DE, SOLDER CUP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

HD D-SUB CONN, PLUG, DE, SOLDER CUP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	301A10129X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Voltage Rating	60 VDC
Wire Gauge	22 AWG

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Features	Connector Type	Flange Feature	Material Flammability Rating	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Dielectric Material	Wire Gauge	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Contact Finish	Termination	Contact Form	Connector Style	Current Rating (Amps)	Number of Positions	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Wire Gauge	Shell Size, Connector Layout
Amphenol CONEC 301A10109X	Black	-25 °C	85 °C	Signal	Grounding Indents Strain Relief	Male Pins Plug	Housing/Shell (Unthreaded)	UL94 V-0	2	B DB	3	Brass	Polybutylene Terephthalate (PBT) Glass Filled	Stranded	28 AWG	26 AWG	8 çin	0.203 çm	125 VDC	Gold	IDC Ribbon Cable	Stamped	D-Sub
Amphenol CONEC 301A10129X	Black	-55 °C	125 °C	Signal	Grounding Indents	Male Pins Plug	Housing/Shell (Unthreaded)	UL94 V-0	3			Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled				8 çin	0.203 çm	60 VDC	Gold		Stamped	D-Sub High Density	3 A	15	Free Hanging (In-Line)	DE E	1	High Density	22 AWG
Amphenol CONEC 301A10119X	Black	-25 °C	85 °C	Signal	Grounding Indents Strain Relief	Male Pins Plug	Housing/Shell (Unthreaded)	UL94 V-0	2			Brass	Polybutylene Terephthalate (PBT) Glass Filled	Stranded	28 AWG	26 AWG	8 çin	0.203 çm	125 VDC	Gold	IDC Ribbon Cable	Stamped	D-Sub		37						4 (DC C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

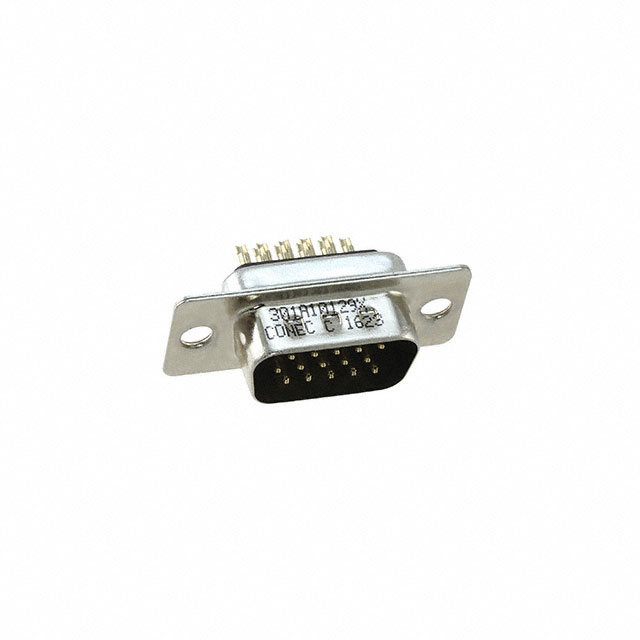

15 Position D-Sub, High Density Plug, Male Pins Connector
