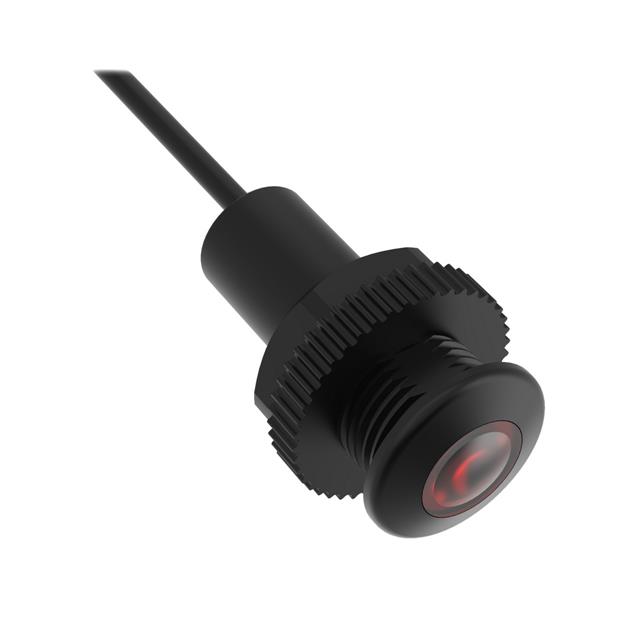

SB12TE1

Active

BANNER ENGINEERING

SB12 THREADED SERIES EMITTER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SB12 THREADED SERIES EMITTER

Technical Specifications

Parameters and characteristics for this part

Part	Cable Length	Cable Length	Sensing Distance	Sensing Distance	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Sensing Method
BANNER ENGINEERING SB12TE1	78.74 in	2 m	4.9 ft	1.5 m	2.5 ms	30 VDC	10 VDC	Infrared	IEC IP67	50 °C	-20 C	Cable	Through-Beam
BANNER ENGINEERING SB12TE1Q3			4.9 ft	1.5 m	2.5 ms	30 VDC	10 VDC	Infrared	IEC IP67	50 °C	-20 C	Connector	Through-Beam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.00
Newark	Each	1	$ 32.00

General part information

Through-Beam Optical Sensor 4.9' (1.50m)
