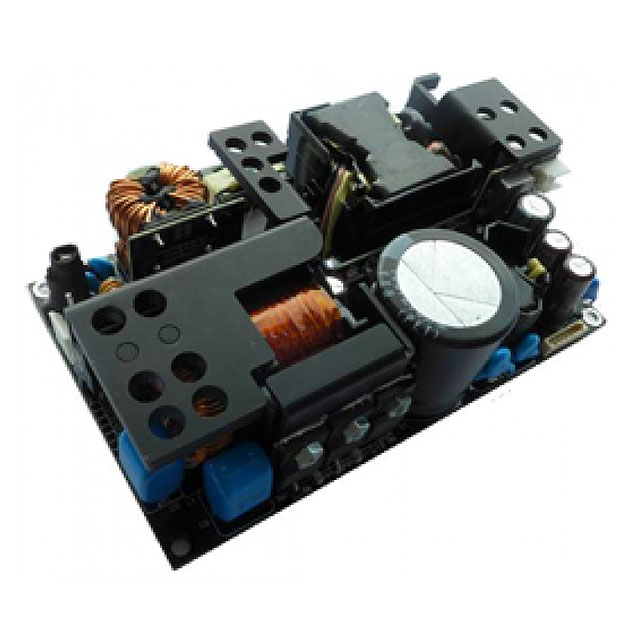

Specification	MDS-400APB24 AA

Applications	ITE (Commercial), Medical
Approval Agency	EN, CE, TUV, UL, CB Scheme, SIQ
Current - Output 1	8.33 A
Efficiency	93 %
Features	PFC, Standby Output, Remote Sense, Remote On/Off, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	400 W, 200 W
Size / Dimension Height	1.4 in
Size / Dimension Length	5 in
Size / Dimension Width	3 in
Standard Number	55011, 50581, 60601-1, 55032, 60950-1
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	24 V

MDS-400 Series

Part	Efficiency	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Features	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Power (Watts)	Applications	Mounting Type	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Approval Agency	Current - Output 1	Type	Standard Number
Delta Electronics MDS-400AUS19 BA	91 %	90 V	264 V	PFC Remote Sense Standby Output Universal Input	3.82 in	1.63 in	7.8 in	300 W 400 W	ITE (Commercial) Medical	Chassis Mount	19 V	4000 Vpk	1	70 °C	-10 °C	CB Scheme CE EN UL	15.8 A	Open Frame	50581 55011 55032 60601-1 60950-1
Delta Electronics MDS-400APB24 AA	93 %	90 V	264 V	PFC Remote On/Off Remote Sense Standby Output Universal Input	3 in	1.4 in	5 in	200 W 400 W	ITE (Commercial) Medical	Chassis Mount	24 V	4000 Vpk	1	70 °C	-10 °C	CB Scheme CE EN SIQ TUV UL	8.33 A	Open Frame	50581 55011 55032 60601-1 60950-1
