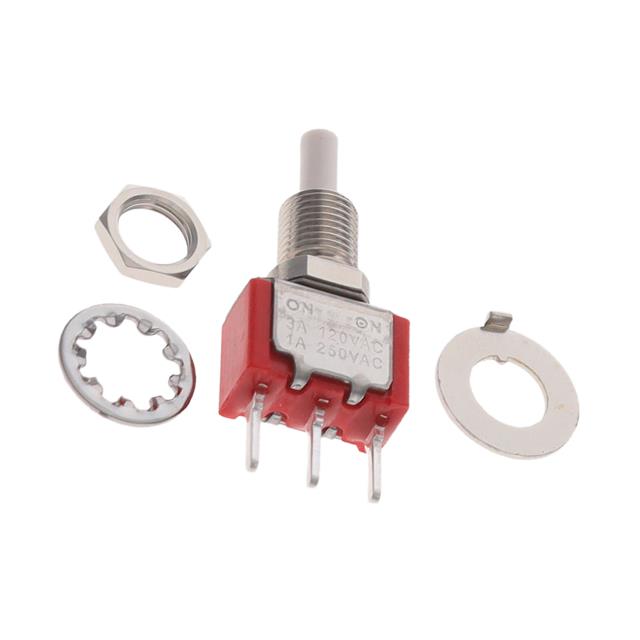

700CSP7B60M2QEH
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
700CSP7B60M2QEH
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 3A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 700CSP7B60M2QEH |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 0.25 in |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.16 | |
| 10 | $ 6.18 | |||
| 25 | $ 5.83 | |||
| 40 | $ 5.65 | |||
| 96 | $ 5.34 | |||
| 288 | $ 4.98 | |||
| 480 | $ 4.82 | |||
| 960 | $ 4.61 | |||
Description
General part information
700CSP7 Series
Pushbutton Switch SPDT Standard Panel Mount, Rear
Documents
Technical documentation and resources
No documents available
