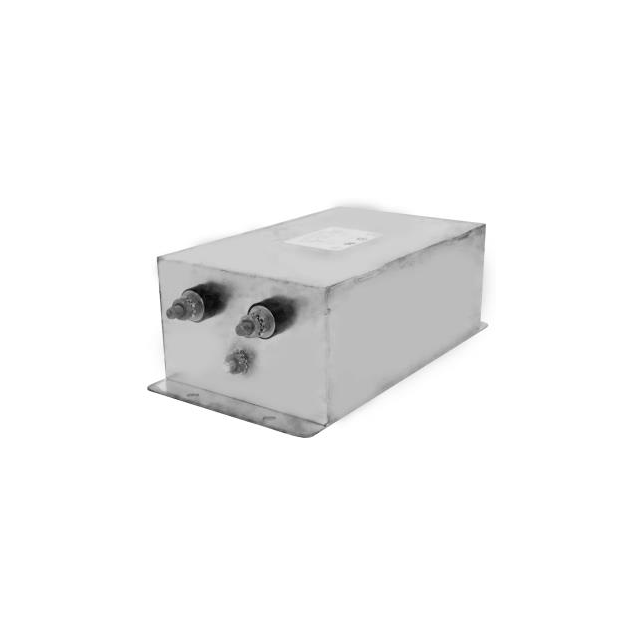

Specification	RP135-180-0-C

Applications	General Purpose
Approval Agency	cURus, CE, SEMKO
Configuration	Single Stage
Current	180 A
Filter Type	Single Phase
Frequency - Operating	60Hz, 50Hz
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	50 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC	250 V

RP135 Series

...

Part	Frequency - Operating (Max)	Current	Configuration	Voltage - Rated AC	Approval Agency	Mounting Type	Applications	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Filter Type
Astrodyne TDI RP190-10-2.2	60 Hz	10 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-10-0.22	60 Hz	10 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-3-.47	60 Hz	3 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-1-.47	60 Hz	1 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-1-0.22	60 Hz	1 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-3-0.22	60 Hz	3 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-1-4.7	60 Hz	1 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-10-.47	60 Hz	10 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-6-1	60 Hz	6 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
Astrodyne TDI RP190-1-1	60 Hz	1 A	Single Stage	250 V	CE cURus SEMKO	Through Hole	General Purpose	-25 °C	100 °C	PC Pins	Single Phase
