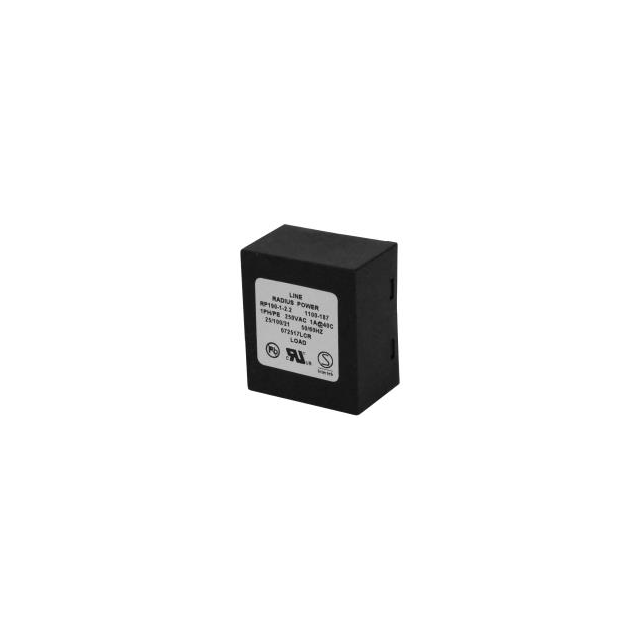

RP190-1-0.22

Active

Astrodyne TDI

LINE FILTER 250VAC 1A TH

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 250VAC 1A TH

Technical Specifications

Parameters and characteristics for this part

Specification	RP190-1-0.22

Applications	General Purpose
Approval Agency	CE, SEMKO, cURus
Configuration	Single Stage
Current	1 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	PC Pins
Voltage - Rated AC	250 V

Part	Filter Type	Mounting Type	Operating Temperature [custom]	Voltage - Rated AC	Approval Agency	Applications	Current	Configuration	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]
Astrodyne TDI RP190-10-0.22	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	10 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-3-.47	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	3 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-1-.47	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	1 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-1-0.22	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	1 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-3-0.22	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	3 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-1-4.7	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	1 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-10-3.3	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	10 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-6-1	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	6 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-3-1	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	3 A	Single Stage	PC Pins	60 Hz	DC
Astrodyne TDI RP190-3-4.7	Single Phase	Through Hole	-25 °C 100 °C	250 V	CE cURus SEMKO	General Purpose	3 A	Single Stage	PC Pins	60 Hz	DC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.66

General part information

Single Phase EMC/EMI Line Filter 1 A 250V DC ~ 60Hz Single Stage PC Pins
