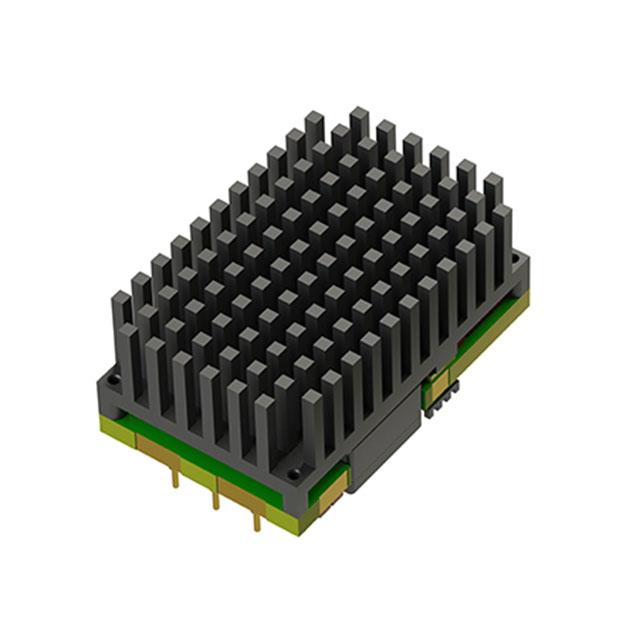

DRQ-12/42-D48NK-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DRQ-12/42-D48NK-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DRQ-12/42-D48NK-C | DRQ-12 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 42 A | 42 - 50 A |
| Efficiency | 95.5 % | 95.5 - 96 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 5-DIP Module, 1/4 Brick | 5-DIP Module, 1/4 Brick, 16-DIP Module (15 Leads), 1/4 Brick |
| Power (Watts) | 500 W | 500 - 600 W |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [z] | 13.2 mm | 13.2 - 27.9 mm |
| Size / Dimension [z] | 0.52 " | 0.52 - 1.1 in |
| Type | Intermediate Bus Converter | Intermediate Bus Converter, Digital, Intermediate Bus Converter |
| Voltage - Input (Max) [Max] | 75 V | 60 - 75 V |
| Voltage - Input (Min) [Min] | 38 V | 38 - 44 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DRQ-12 Series
DC DC CONVERTER 12V 600W
| Part | Applications | Voltage - Output 1 | Efficiency | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Input (Min) [Min] | Type | Voltage - Isolation | Mounting Type | Package / Case | Current - Output (Max) [Max] | Features | Number of Outputs | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DRQ-12/50-L48NB-C | ITE (Commercial) | 12 V | 96 % | 60 V | 85 °C | -40 °C | 600 W | 44 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 1/4 Brick, 5-DIP Module | 50 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 27.9 mm | 1.1 in | 1.45 in | 36.8 mm | Active Low, Enable |
Murata Power Solutions Inc. DRQ-12/42-D48NKA-C | ITE (Commercial) | 12 V | 95.5 % | 75 V | 85 °C | -40 °C | 500 W | 38 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 16-DIP Module (15 Leads), 1/4 Brick | 42 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 13.2 mm | 0.52 " | 1.45 in | 36.8 mm | Active Low, Enable |
Murata Power Solutions Inc. DRQ-12/42-D48PBAL2-C | ITE (Commercial) | 12 V | 95.5 % | 75 V | 85 °C | -40 °C | 500 W | 38 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 16-DIP Module (15 Leads), 1/4 Brick | 42 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 13.2 mm | 0.52 " | 1.45 in | 36.8 mm | Active High, Enable |
Murata Power Solutions Inc. DRQ-12/50-L48PBL1-C | ITE (Commercial) | 12 V | 96 % | 60 V | 85 °C | -40 °C | 600 W | 44 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 1/4 Brick, 5-DIP Module | 50 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 13.2 mm | 0.52 " | 1.45 in | 36.8 mm | Active High, Enable |
Murata Power Solutions Inc. DRQ-12/50-L48PKL2-C | ITE (Commercial) | 12 V | 96 % | 60 V | 85 °C | -40 °C | 600 W | 44 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 1/4 Brick, 5-DIP Module | 50 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 27.9 mm | 1.1 in | 1.45 in | 36.8 mm | Active High, Enable |
Murata Power Solutions Inc. DRQ-12/50-L48NKSA-C | ITE (Commercial) | 12 V | 96 % | 60 V | 85 °C | -40 °C | 600 W | 44 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 16-DIP Module (15 Leads), 1/4 Brick | 50 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 27.9 mm | 1.1 in | 1.45 in | 36.8 mm | Active Low, Enable |
Murata Power Solutions Inc. DRQ-12/50-L48PK-C | ITE (Commercial) | 12 V | 96 % | 60 V | 85 °C | -40 °C | 600 W | 44 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 1/4 Brick, 5-DIP Module | 50 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 27.9 mm | 1.1 in | 1.45 in | 36.8 mm | Active High, Enable |
Murata Power Solutions Inc. DRQ-12/50-L48PB-C | ITE (Commercial) | 12 V | 96 % | 60 V | 85 °C | -40 °C | 600 W | 44 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 1/4 Brick, 5-DIP Module | 50 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 13.2 mm | 0.52 " | 1.45 in | 36.8 mm | Active High, Enable |
Murata Power Solutions Inc. DRQ-12/42-D48PBA-C | ITE (Commercial) | 12 V | 95.5 % | 75 V | 85 °C | -40 °C | 500 W | 38 V | Intermediate Bus Converter, Digital | 2250 VDC | Through Hole | 16-DIP Module (15 Leads), 1/4 Brick | 42 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 13.2 mm | 0.52 " | 1.45 in | 36.8 mm | Active High, Enable |
Murata Power Solutions Inc. DRQ-12/42-D48NK-C | ITE (Commercial) | 12 V | 95.5 % | 75 V | 85 °C | -40 °C | 500 W | 38 V | Intermediate Bus Converter | 2250 VDC | Through Hole | 1/4 Brick, 5-DIP Module | 42 A | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | 1 | 58.4 mm | 2.3 in | 13.2 mm | 0.52 " | 1.45 in | 36.8 mm | Active Low, Enable |
Description
General part information
DRQ-12 Series
Intermediate Bus Converter DC DC Converter 1 Output 12V 42A 38V - 75V Input
