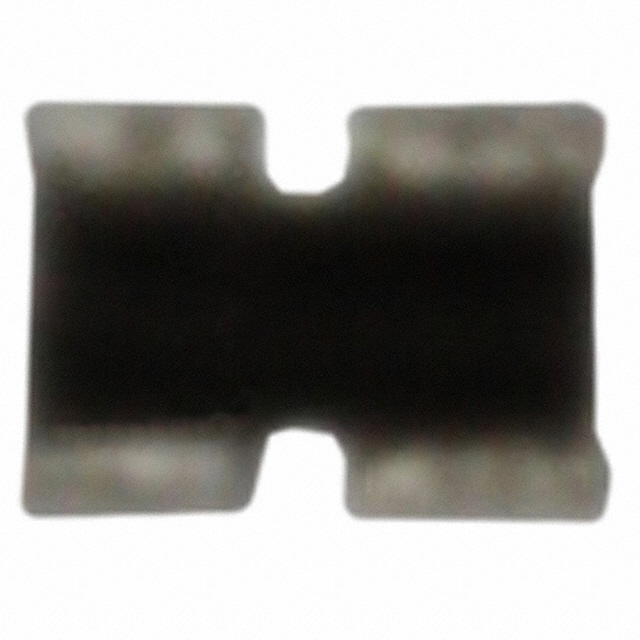

740X043101JP

Active

CTS Resistor Products

RES ARRAY 2 RES 100 OHM 0302

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

740X043101JP

Active

CTS Resistor Products

RES ARRAY 2 RES 100 OHM 0302

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.08

Description

General part information

740X043 Series

100 Ohm ±5% 31mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 0302 (0805 Metric), Convex, Long Side Terminals

Documents

Technical documentation and resources

Datasheet

Specification	740X043101JP	740X043 Series

Applications	DDR SDRAM, DRAM, MDDR	DDR SDRAM, DRAM, MDDR
Circuit Type	Isolated	Isolated
Grade	Automotive	Automotive
Height - Seated (Max)	0.45 mm	0.45 mm
Height - Seated (Max) [Max] [z]	0.018 "	0.018 "
Mounting Type	Surface Mount	Surface Mount
Number of Pins	4	4
Number of Resistors	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	0302 (0805 Metric)	0302 (0805 Metric)
Power Per Element	31 mW	31 mW
Qualification	AEC-Q200	AEC-Q200
Resistance (Ohms)	100 Ohms	33 - 560 Ohms
Resistance (Ohms)	-	10k, 220k, 150k
Size / Dimension [x]	0.031 in	0.031 in
Size / Dimension [x]	0.8 mm	0.8 mm
Size / Dimension [y]	0.6 mm	0.6 mm
Size / Dimension [y]	0.024 "	0.024 "
Temperature Coefficient	200 ppm/°C	200 ppm/°C
Tolerance	5 %	5 %

Part

Number of Pins

Mounting Type

Package / Case

Temperature Coefficient

Power Per Element

Size / Dimension [x]

Size / Dimension [y]

Operating Temperature [Min]

Operating Temperature [Max]

Height - Seated (Max)

Height - Seated (Max) [Max] [z]

Grade

Resistance (Ohms)

Circuit Type

Qualification

Tolerance

Applications

Number of Resistors

Resistance (Ohms)

CTS Resistor Products

740X043103JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

10k

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

CTS Resistor Products

740X043151JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

150 Ohms

CTS Resistor Products

740X043224JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

220k

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

CTS Resistor Products

740X043560JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

56 Ohms

CTS Resistor Products

740X043561JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

560 Ohms

CTS Resistor Products

740X043274JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

270 kOhms

CTS Resistor Products

740X043154JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

150k

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

CTS Resistor Products

740X043104JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

100 kOhms

CTS Resistor Products

740X043101JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

100 Ohms

CTS Resistor Products

740X043330JP

Surface Mount

0302 (0805 Metric)

200 ppm/°C

31 mW

0.031 in

0.8 mm

0.6 mm

0.024 "

-55 °C

125 °C

0.45 mm

0.018 "

Automotive

Isolated

AEC-Q200

5 %

DDR SDRAM, DRAM, MDDR

33 Ohms

Part	Number of Pins	Mounting Type	Package / Case	Temperature Coefficient	Power Per Element	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Grade	Resistance (Ohms)	Circuit Type	Qualification	Tolerance	Applications	Number of Resistors	Resistance (Ohms)
CTS Resistor Products 740X043103JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive	10k	Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2
CTS Resistor Products 740X043151JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	150 Ohms
CTS Resistor Products 740X043224JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive	220k	Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2
CTS Resistor Products 740X043560JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	56 Ohms
CTS Resistor Products 740X043561JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	560 Ohms
CTS Resistor Products 740X043274JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	270 kOhms
CTS Resistor Products 740X043154JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive	150k	Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2
CTS Resistor Products 740X043104JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	100 kOhms
CTS Resistor Products 740X043101JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	100 Ohms
CTS Resistor Products 740X043330JP	4	Surface Mount	0302 (0805 Metric)	200 ppm/°C	31 mW	0.031 in	0.8 mm	0.6 mm	0.024 "	-55 °C	125 °C	0.45 mm	0.018 "	Automotive		Isolated	AEC-Q200	5 %	DDR SDRAM, DRAM, MDDR	2	33 Ohms
