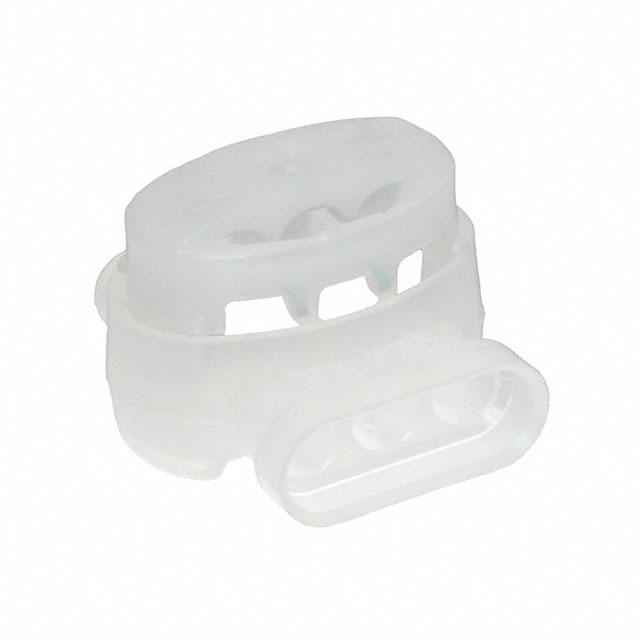

314U-BOX

Active

3M (TC)

314U-POUCH IDC CONNECTOR 314U (50/POUCH)

Search across all available documentation for this part.

Active

3M (TC)

314U-POUCH IDC CONNECTOR 314U (50/POUCH)

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Terminal Type	Insulation	Features	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Color	Length	Length	Length	Width [x]	Width [x]	Adhesive	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Backing, Carrier	Usage	Tape Type
3M (TC) 314U-BOX	IDC	Inline Tap	Fully Insulated	Flame Retardant	14 AWG	22 AWG	3	White
3M (TC) 314H-MED								White	10 ft	3.3 yds	3 m	25.4 mm	1 in	Acrylic	100 °F	10 °C	50 °F	38 °C	Foam	Mounting	Double Sided Film
3M (TC) 314DC-SF								White	10 ft	3.3 yds	3 m	25.4 mm	1 in	Acrylic					Foam	Mounting	Double Sided Foam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Inline, Tap Connector IDC 14-22 AWG White
