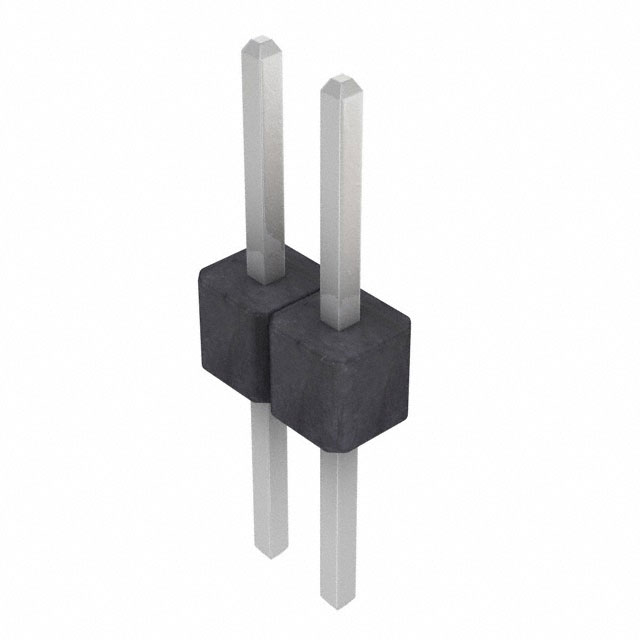

PTC02SABN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC02SABN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC02SABN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC02 Series

Part	Insulation Height	Insulation Height	Current Rating (Amps)	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Color	Connector Type	Pitch - Mating	Pitch - Mating	Contact Shape	Style	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Insulation Material	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Mounting Type	Contact Material	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]
Sullins Connector Solutions PTC02DAGN	0.1 in	2.54 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	4	All	2.54 µm	100 µin	2.54 mm	0.1 in	Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable	18.29 mm	0.72 "	Solder	Push-Pull	2.54 çm	100 çin	2	Polyester Thermoplastic	1.05 in	26.67 mm	UL94 V-0	Through Hole	Copper Alloy
Sullins Connector Solutions PTC02DAAN	0.1 in	2.54 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	4	All	2.54 µm	100 µin	2.54 mm	0.1 in	Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable	3.05 mm	0.12 in	Solder	Push-Pull	2.54 çm	100 çin	2	Polyester Thermoplastic	0.45 "	11.43 mm	UL94 V-0	Through Hole	Copper Alloy
Sullins Connector Solutions PTC02DACN	0.1 in	2.54 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	4	All	2.54 µm	100 µin	2.54 mm	0.1 in	Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable	8.13 mm	0.32 in	Solder	Push-Pull	2.54 çm	100 çin	2	Polyester Thermoplastic		0.65 in	UL94 V-0	Through Hole	Copper Alloy	16.51 mm
Sullins Connector Solutions PTC02SAHN	0.1 in	2.54 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	2	All	2.54 µm	100 µin			Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable	20.83 mm	0.82 in	Solder	Push-Pull	2.54 çm	100 çin	1	Polyester Thermoplastic	1.15 in	29.21 mm	UL94 V-0	Through Hole	Copper Alloy
Sullins Connector Solutions PTC02DABN	0.1 in	2.54 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	4	All	2.54 µm	100 µin	2.54 mm	0.1 in	Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable			Solder	Push-Pull	2.54 çm	100 çin	2	Polyester Thermoplastic	0.56 in	14.22 mm	UL94 V-0	Through Hole	Copper Alloy		0.23 in	5.84 mm
Sullins Connector Solutions PTC02SFBN	0.1 in	2.54 mm	3 A	Unshrouded	0.318 "		Male Pin	2	All	2.54 µm	100 µin			Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable			Solder	Push-Pull	2.54 çm	100 çin	1	Polyester Thermoplastic	0.638 in	16.21 mm	UL94 V-0	Through Hole	Copper Alloy		0.22 in	5.58 mm	8.08 mm
Sullins Connector Solutions PTC02SBCN	0.14 in	3.56 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	2	All	2.54 µm	100 µin			Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable	8.13 mm	0.32 in	Solder	Push-Pull	2.54 çm	100 çin	1	Polyester Thermoplastic			UL94 V-0	Through Hole Right Angle	Copper Alloy
Sullins Connector Solutions PTC02SABN	0.1 in	2.54 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	2	All	2.54 µm	100 µin			Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable			Solder	Push-Pull	2.54 çm	100 çin	1	Polyester Thermoplastic	0.56 in	14.22 mm	UL94 V-0	Through Hole	Copper Alloy		0.23 in	5.84 mm
Sullins Connector Solutions PTC02DBCN	0.24 in	6.1 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	4	All	2.54 µm	100 µin	2.54 mm	0.1 in	Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable	8.13 mm	0.32 in	Solder	Push-Pull	2.54 çm	100 çin	2	Polyester Thermoplastic			UL94 V-0	Through Hole Right Angle	Copper Alloy
Sullins Connector Solutions PTC02SBEN	0.14 in	3.56 mm	3 A	Unshrouded	0.23 in	5.84 mm	Male Pin	2	All	2.54 µm	100 µin			Tin	Black	Header	0.1 in	2.54 mm	Square	Board to Board Cable			Solder	Push-Pull	2.54 çm	100 çin	1	Polyester Thermoplastic			UL94 V-0	Through Hole Right Angle	Copper Alloy		0.52 "	13.21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC02 Series

Connector Header Through Hole 2 position 0.100" (2.54mm)
