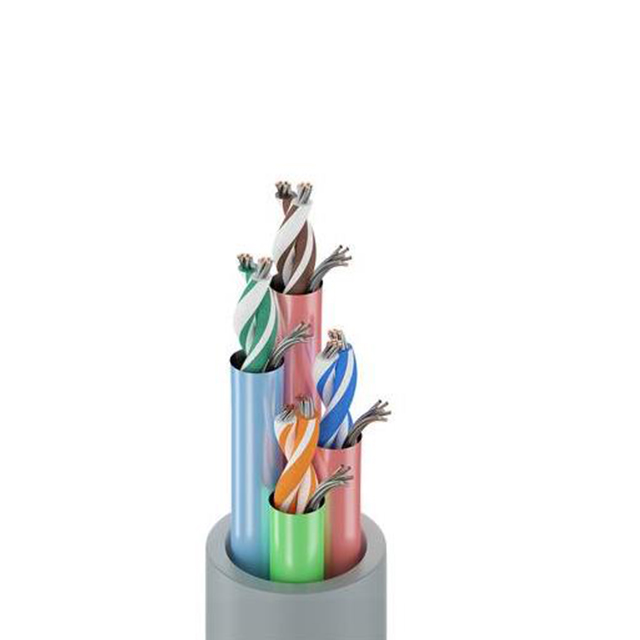

89728 0081000

Active

Belden Inc.

MULTI-PAIR 4CON 24AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4CON 24AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	89728 0081000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.307 in
Jacket (Insulation) Diameter [diameter]	7.8 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Number of Conductors	Voltage	Wire Gauge	Shield Material	Conductor Insulation	Shield Coverage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Features	Cable Type	Jacket (Insulation) Material	Shield Type	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Length [x]	Length [x]
Belden Inc. 89728 0081000	32 AWG	7	Computer	4	300 V	24 AWG	Aluminum	Foam Fluorinated Ethylene-Propylene (FFEP)	100 %	Copper Tinned	0.307 in	7.8 mm	Gray	Drain Wire	Multi-Pair	Plenum Polyvinylidene Fluoride (PVDF)	Foil	1000 ft	304.8 m	0.432 mm	0.017 in	150 °C	-70 °C	UL Style CMP
Belden Inc. 89728 008500	32 AWG	7	Computer	4	300 V	24 AWG	Aluminum	Foam Fluorinated Ethylene-Propylene (FFEP)	100 %	Copper Tinned	0.307 in	7.8 mm	Gray	Drain Wire	Multi-Pair	Plenum Polyvinylidene Fluoride (PVDF)	Foil			0.432 mm	0.017 in	150 °C	-70 °C	UL Style CMP	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 17.45

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
