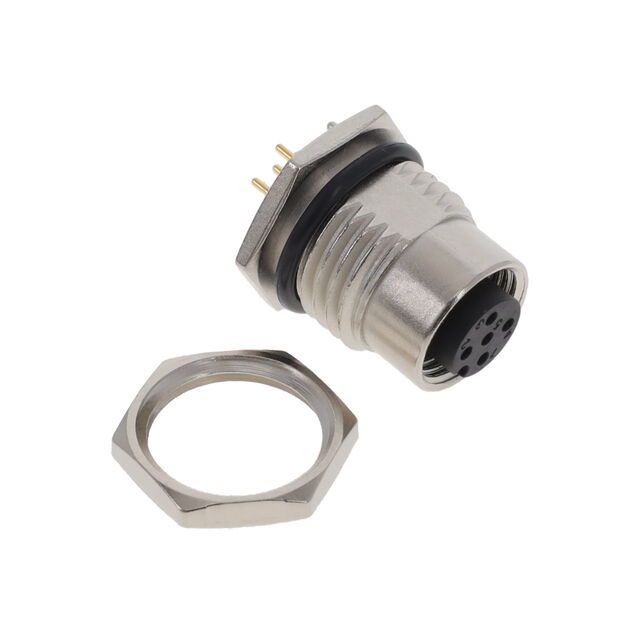

MSAS-05PFFP-SF8002

Active

Amphenol LTW

M12 PANEL PCB CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M12 PANEL PCB CONN

Technical Specifications

Parameters and characteristics for this part

Specification	MSAS-05PFFP-SF8002

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Ground
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Shell Finish	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ingress Protection	Termination	Insert Material	Orientation	Current Rating (Amps)	Color	Shell Size - Insert	Mounting Feature	Contact Finish - Mating	Shell Material	Voltage Rating	Connector Type	Contact Material	Mounting Type	Primary Material
Amphenol LTW MSAS-05PFFP-SF8002	Nickel	Shielded	-40 °C	105 ░C	Ground	IP68 IP69K	Solder	Polyamide (PA) Nylon Glass Filled	A	4 A	Silver	M12-5	Bulkhead - Front Side Nut	Gold	Zinc Alloy	60 VDC	Female Sockets Plug	Copper Alloy	Panel Mount Through Hole	Metal
Amphenol LTW MSAS-05PFFP-SF8001	Nickel	Shielded	-40 °C	105 ░C	Ground	IP68 IP69K	Solder	Polyamide (PA) Nylon Glass Filled	A	4 A	Silver	M12-5	Bulkhead - Front Side Nut	Gold	Zinc Alloy	60 VDC	Female Sockets Plug	Copper Alloy	Panel Mount Through Hole	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
