Technical Specifications
Parameters and characteristics for this part
| Specification | R124052003W |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | RG-405 |
| Cable Group Diameter (Semi Rigid) | 0.085 in |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 7.91 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information
R12405 Series

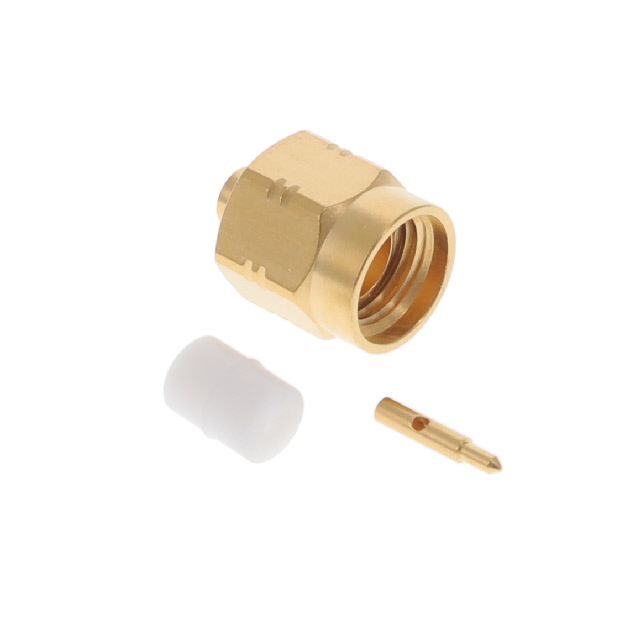

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Documents
Technical documentation and resources
No documents available
