159220-2002

Active

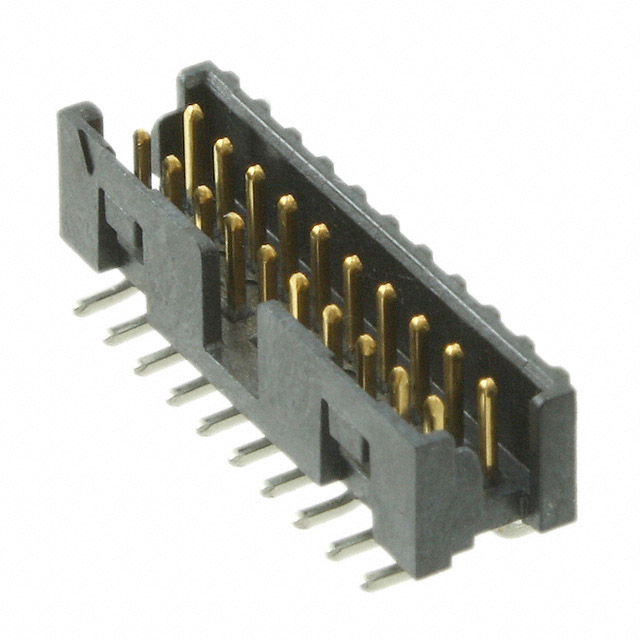

CONN HEADER SMD 20POS 2MM

Search across all available documentation for this part.

Active

CONN HEADER SMD 20POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	159220-2002

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	3.61 mm
Contact Length - Mating	0.142 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Detent Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.33 mm
Insulation Height	0.21 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

CONN HEADER SMD 20POS 2MM

Part	Number of Rows	Voltage Rating	Number of Positions	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Style	Number of Positions Loaded	Contact Finish - Post	Shrouding	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Current Rating (Amps)	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Features	Fastening Type	Contact Finish - Mating	Termination	Material Flammability Rating
3M 159220-2002	2	150 VDC	20	Black	Surface Mount	5.33 mm	0.21 in	3.61 mm	0.142 in	105 ░C	-55 °C	0.079 in	2 mm	Board to Cable/Wire	All	Tin	Shrouded - 4 Wall	Male Pin	Header	15 µin	0.38 µm	Square	1.25 A	Copper Alloy	200 µin	5.08 µm	0.079 in	2 mm	Keying Slot	Detent Lock	Gold	Solder	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 20 position 0.079" (2.00mm)
