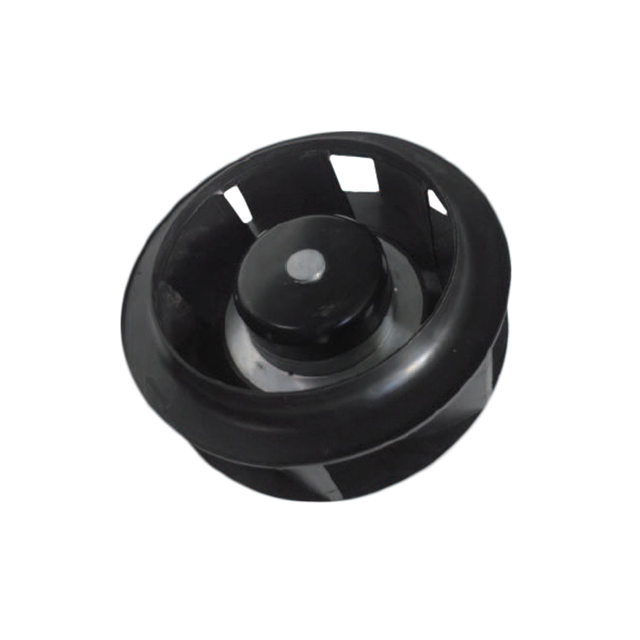

MSI1769H24B2-BBR

Active

Mechatronics Bearing Group

FAN IMP MTRZD 175X69MM 24VDC

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN IMP MTRZD 175X69MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	MSI1769H24B2-BBR

Air Flow	345 CFM
Air Flow	9.66 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	4.6 A
Fan Type	Motorized Impellers
Features	Locked Rotor Sensor, Auto Restart
Material - Blade	Plastic
Noise	72 dB(A)
RPM	4000 RPM
Size / Dimension [diameter]	175 mm Dia
Static Pressure	448.4 Pa
Static Pressure	1.8 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	2.9 lbs
Weight	1.3 kg
Width [x]	69 mm

Part	Static Pressure	Static Pressure	Size / Dimension [diameter]	Bearing Type	Air Flow	Air Flow	Noise	Current Rating (Amps)	Material - Blade	Approval Agency	RPM	Termination	Features	Weight	Weight	Voltage - Rated	Width [x]	Fan Type	Voltage - Rated [custom]
Mechatronics Bearing Group MSI1769H24B1-BBR	448.4 Pa	1.8 in H2O	175 mm Dia	Ball	345 CFM	9.66 m³/min	72 dB(A)	4.6 A	Plastic	CE cUL TUV UL	4000 RPM	3 Wire Leads	Auto Restart Speed Sensor (Tach)	2.9 lbs	1.3 kg	24 VDC	69 mm	Motorized Impellers
Mechatronics Bearing Group MSI1769H48B-BBR	448.4 Pa	1.8 in H2O	175 mm Dia	Ball	345 CFM	9.66 m³/min	72 dB(A)	2.3 A	Plastic	CE cUL TUV UL	4000 RPM	2 Wire Leads	Auto Restart	2.9 lbs	1.3 kg		69 mm	Motorized Impellers	48 VDC
Mechatronics Bearing Group MSI1769H24B2-BBR	448.4 Pa	1.8 in H2O	175 mm Dia	Ball	345 CFM	9.66 m³/min	72 dB(A)	4.6 A	Plastic	CE cUL TUV UL	4000 RPM	3 Wire Leads	Auto Restart Locked Rotor Sensor	2.9 lbs	1.3 kg	24 VDC	69 mm	Motorized Impellers
Mechatronics Bearing Group MSI1769H48B1+7-BBR	448.4 Pa	1.8 in H2O	175 mm Dia	Ball	345 CFM	9.66 m³/min	72 dB(A)	2.3 A	Plastic	CE cUL TUV UL	4000 RPM	3 Wire Leads	Auto Restart Speed Sensor (Tach) Voltage Control	2.9 lbs	1.3 kg		69 mm	Motorized Impellers	48 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 99.31

General part information

Fan Motorized Impellers 24VDC Round - 175mm Dia Ball 345.0 CFM (9.66m³/min) 3 Wire Leads
