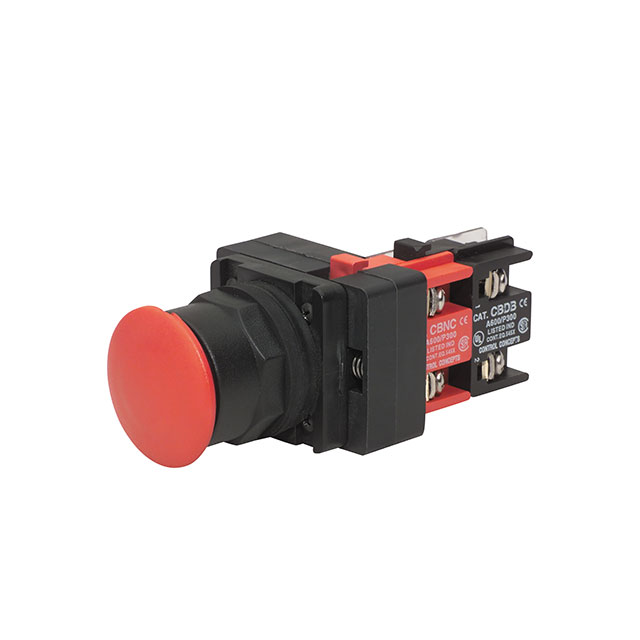

PBO-PPMCRD-NC

Active

c3controls

SWITCH E-STOP PULL RESET 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH E-STOP PULL RESET 10A 72V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PBO-PPMCRD-NC	PBO-PPM Series

Actuator Type	-	Pushbutton, Mushroom
Circuit	SPST-NC	SPST-NC
Current Rating (Amps)	10 A, 5 A	5 - 10 A
Illumination	-	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	30.2 mm	30.2 mm
Requires	-	Contact Block(s)
Reset Operation	Pull	Pull
Switch Function	On-Off	On-Off
Termination Style	Screw Terminal	Screw Terminal
Type	-	Maintained
Voltage Rating - AC	72 V	72 V
Voltage Rating - DC	28 V	28 V

CONFIG SW BODY MUSH PB NON-ILLUM

Part	Requires	Panel Cutout Dimensions [diameter]	Type	Illumination	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Voltage Rating - DC	Mounting Type	Termination Style	Ingress Protection	Reset Operation	Current Rating (Amps)	Voltage Rating - AC
c3controls PBO-PPMCRD	Contact Block(s)	30.2 mm	Maintained	Non-Illuminated	Pushbutton, Mushroom
c3controls PBO-PPMCRD-NC		30.2 mm				SPST-NC	-40 °C	55 °C	On-Off	28 V	Panel Mount, Rear	Screw Terminal	IP65 - Dust Tight, Water Resistant	Pull	5 A, 10 A	72 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 52.13

General part information

SWITCH E-STOP PULL RESET 10A 72V
