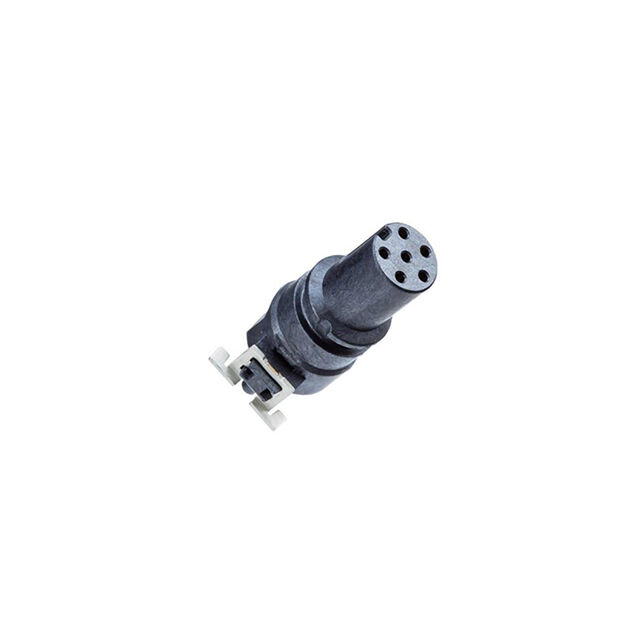

M8S-06PFFT-EE0001

Active

Amphenol LTW

M SERIES, M8, 1.5A, 06 PINS, SMT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M8, 1.5A, 06 PINS, SMT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Termination	Connector Type	Shielding	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insert Material	Color	Orientation	Primary Material	Shell Size - Insert	Number of Positions	Contact Material	Features	Voltage Rating	Contact Finish - Mating
Amphenol LTW M8S-06PFFT-EE0001	1.5 A	Solder	Receptacle Female Sockets	Unshielded	Push-Pull	-55 °C	125 °C	Surface Mount	Thermoplastic	Black	A	Plastic	M8-6	6	Copper Alloy	Board Guide Ground	30 VDC	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
