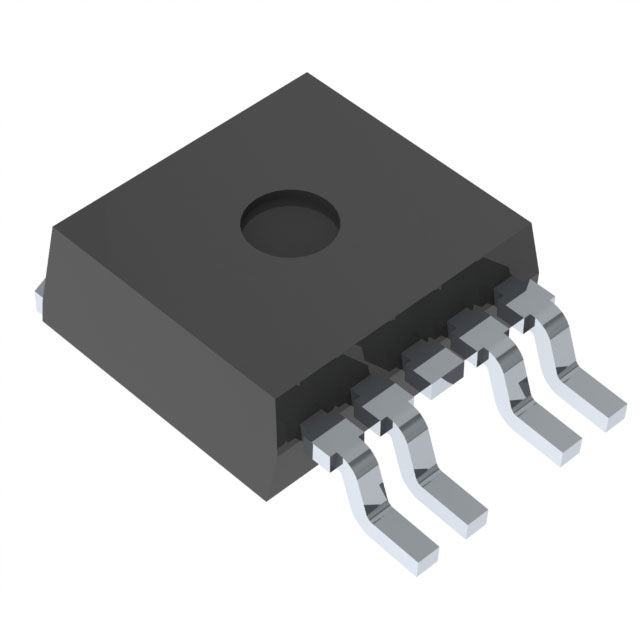

BTS426L1E3062AAUMA1

Active

Infineon Technologies

POWER LOAD SW, HIGH SIDE, -40TO150DEG C ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

POWER LOAD SW, HIGH SIDE, -40TO150DEG C ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	BTS426L1E3062AAUMA1

Current - Output (Max)	7 A
Fault Protection	Open Load Detect, Short Circuit, Reverse Current, Over Voltage, Over Temperature, Current Limiting (Fixed)
Features	Auto Restart, Slew Rate Controlled
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	TO-263BB, D2PAK (4 Leads + Tab), TO-263-5
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	50 mOhm
Supplier Device Package	PG-TO263-5-2
Switch Type	General Purpose
Voltage - Load [Max]	34 V
Voltage - Load [Min]	5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Rds On (Typ)	Input Type	Ratio - Input:Output [custom]	Mounting Type	Switch Type	Package / Case	Interface	Supplier Device Package	Output Type	Voltage - Load [Max]	Voltage - Load [Min]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Outputs	Fault Protection	Current - Output (Max)
Infineon Technologies BTS426L1	50 mOhm	Non-Inverting	1:1	Through Hole	General Purpose	TO-220-5 Formed Leads	On/Off	P-TO220-5-3	N-Channel	34 V	5 V	High Side	150 °C	-40 °C	Auto Restart Status Flag	1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage
Infineon Technologies BTS426L1E3062AAUMA1	50 mOhm	Non-Inverting	1:1	Surface Mount	General Purpose	D2PAK (4 Leads + Tab) TO-263-5 TO-263BB	On/Off	PG-TO263-5-2	N-Channel	34 V	5 V	High Side	150 °C	-40 °C	Auto Restart Slew Rate Controlled	1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage Reverse Current Short Circuit	7 A
Infineon Technologies BTS426L1 E3043	50 mOhm	Non-Inverting	1:1	Through Hole	General Purpose	TO-220-5	On/Off	P-TO220-5	N-Channel	34 V	5 V	High Side	150 °C	-40 °C	Auto Restart Status Flag	1	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 N-Channel 7A PG-TO263-5-2
